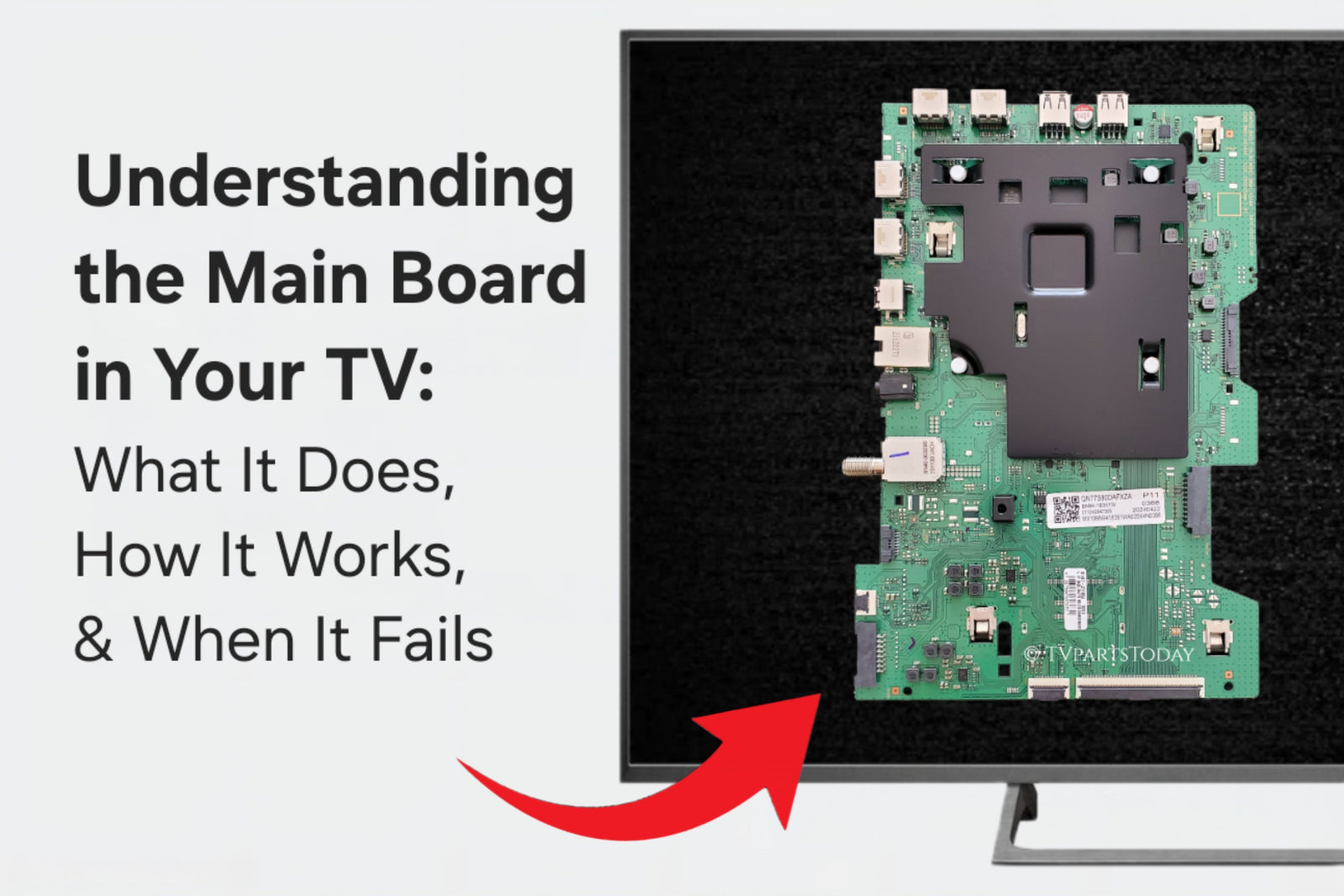

Every modern television relies on a primary circuit board that manages nearly all of its functions. This component is known as the main board, and it serves as the command center for video processing, audio control, smart features, and communication between internal systems. When a TV loses signal, freezes, stops responding to inputs, or displays corrupted video, the main board is often involved. At TVpartsToday, we help DIY repairers diagnose these issues by understanding what the main board actually does and how it interacts with the other internal boards inside the TV.
Rather watch a video & get started with your repair instead? Check out our YouTube video covering How To Get Started below:
What the Main Board Controls Inside a Television
The main board is responsible for coordinating the flow of information through the TV. Any signal entering the television, whether through HDMI, USB, component connections, an antenna, or a network source, is processed by the main board before it can be displayed or heard. It interprets these signals, determines how they should be output, and adjusts them according to the settings you select on screen.
Because it handles both digital and analog inputs, the main board converts signals into data that can be used by the rest of the system. Once processed, the video information is prepared for display and passed along toward the timing circuitry that ultimately controls the pixels on the screen.
Beyond basic signal processing, the main board also manages resolution scaling, frame rate adjustments, noise reduction, and the color information needed to produce a high-quality image. Parallel to this, the board routes audio signals to either the internal speakers or any connected external audio system.
Smart functionality is also housed on the main board. In televisions equipped with an operating system such as Roku, Tizen, Android TV, or webOS, the main board contains the CPU, GPU, memory, and storage required to run apps, stream content, and manage network activity. Features such as Wi Fi connectivity, Bluetooth pairing, and menu navigation all originate from this circuitry.
Finally, the main board receives commands from the IR sensor, communicates with the physical buttons on the TV, and interacts with connected devices such as soundbars or game consoles. Every action you take through the remote moves through the main board before affecting the TV.
How the Main Board Works With the T-Con Board
In most televisions, the main board and the T Con board operate together to create the final image on the screen. The main board processes all incoming video information and sends it through an LVDS or V-by-One cable to the T Con board. The T Con board then translates that data into highly precise timing instructions that control how each pixel illuminates.
This two-board setup is common because it allows easier troubleshooting and targeted replacement. The main board handles the logic and processing, while the T Con manages pixel timing.
Some televisions, particularly compact or budget models, combine these two systems into a single board. In these designs, the timing circuitry is built directly into the main board, and no separate T Con board exists. This simplifies assembly but makes repairs more challenging, because a failure in the timing circuit requires replacement of the entire main board.
Recognizing Symptoms of Main Board Failure
A wide range of symptoms can indicate main board issues. A TV that turns on without displaying video, freezes during operation, or fails to recognize HDMI inputs often points toward a processing failure. Sound loss, color distortion, or inconsistent menu behavior can also be linked to the main board. When the IR sensor stops responding or when every input on the TV fails at once, the main board is the most likely culprit.
If you are unsure whether your TV uses a separate T Con board, checking the internal layout can help. The T Con is usually found beneath a metal shield and located between the main board and the panel. If no such board is present, the timing circuit is likely integrated into the main board itself.
Diagnosing a Main Board Before Replacing It
There are several steps to take before committing to a replacement. Begin by performing a factory reset or software update if the TV is still usable. Inspect all wiring and connectors between the power supply, main board, and display. Look for any physical damage such as bulging capacitors or burnt components. If the backlight turns on but the TV remains frozen or displays no video, either the main board or T Con is responsible. In televisions with an integrated T Con, the main board becomes the primary suspect.
The main board is generally located near the input ports on the back of the TV and is larger than the T Con board. It connects directly to the power supply, display ribbons, audio system, and control components.
It is essential to match the exact part number when replacing a main board. Even televisions with identical model numbers can contain different boards depending on manufacturing batch or region. Using the wrong board can result in no picture, incompatible firmware, or complete failure to operate.
The main board plays an essential role in every aspect of TV performance, from video and audio processing to smart operations and system control. Understanding how it works and how it interacts with the T Con board provides clarity when diagnosing display issues, input failures, and software problems. When replacement becomes necessary, matching the exact part number ensures full compatibility and the best chance of restoring your TV to full function. TVpartsToday is here to help with part number identification, troubleshooting guidance, and high-quality replacement boards for every major brand.
