Features of the 2021 Xiaomi Mi TV Master 77 77"
Xiaomi Mi TV Master 77
77" 4K HDRParts
Summary
77"
4K
HDR
67.8 in
38.5 in
2.6 in
OLED
--, maximum peak of 1000 nits
Infinite:1
Total 70 W
MIUI TV 3.0
Basics: Xiaomi Mi TV Master 77 specs: Technical sheet
Brand
- Brand
- Xiaomi
- Serie
- Mi Tv Master
- Model
- Mi TV Master 77
- Other Codes
Release Date
- Year
- 2021
LCD LED
Technology
OLEDOLED panels achieve an infinite contrast in a smaller thickness
Final image
PerfectAn image with pure blacks, maybe the brightness and the life time are slightly lower than on an LCD panel
Technical Details
Size (inches) and resolution
- Diagonal
- 77 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:09
- Pixel density
- 57 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- Self-luminous pixels
- Backlight form
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision IQ
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- 1 ms
- Average time
- --
- Input lag
- --
- Gaming
- ALLM , FreeSync, Game Mode, VRR
Technologies
Sound
- Speakers
- 15W 2x 10W 2x
- Power
- 70 W
- Output channels
- 3.1 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Audio
- DTS HD
Digital tuner:
- Terrestrial
-
- DTMB
- Satelite
- Cable
- ATSC & QAM
- No
- ISDB
- No
- DTMB
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.1 1x HDMI 2.0 2x ARC CEC eARC HDCP 2.3
- USB
- USB 2.0 1x USB 3.0 1x
- Satellite
- Composite
- CI
- Optical Audio
- 3.5mm audio
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11ax (IEEE 802.11ax, Wi-Fi 6), 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes • Bluetooth 5.0
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
Remote control
- Type of command
- AI Mi Remote • Remote control
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design

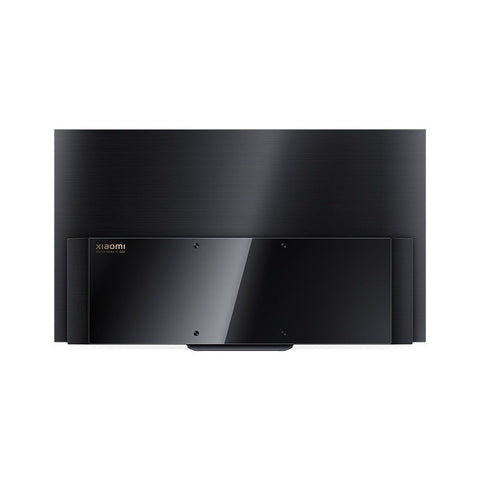

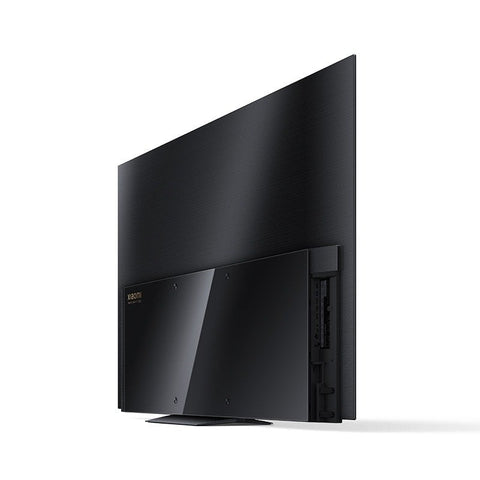

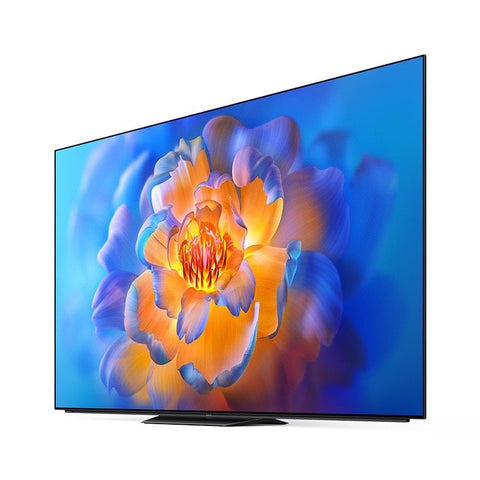

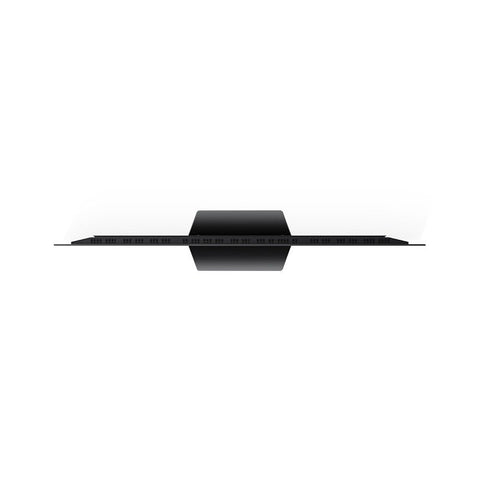

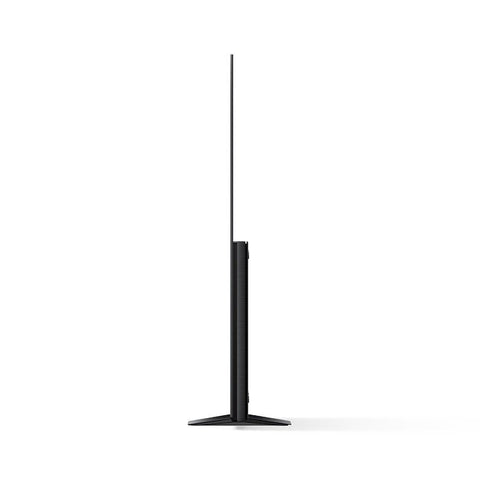

Image gallery
With Stand
- Dimensions
- 172.3 cm•102.2 cm•28.9 cm
- Weight
- 37 Kg
Without Stand
- Dimensions
- 172.3 cm•97.7 cm•6.7 cm
- Weight
- 41 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- Quad Stand
VESA
- VESA size
- 400 x 400 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • MIUI TV 3.0
Voice assistants
- Alexa
- Google Assistant
- Voice control
- Yes
Hardware
- SOC model
- Mediatek MT9950
- RAM
- 8.5GB
- ROM
- 64GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- 600 W
Power supply
- Power supply
- 100 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- TUV Eye Comfort
