Features of the 2016 TCL Xclusive X1 U65S9906 65"

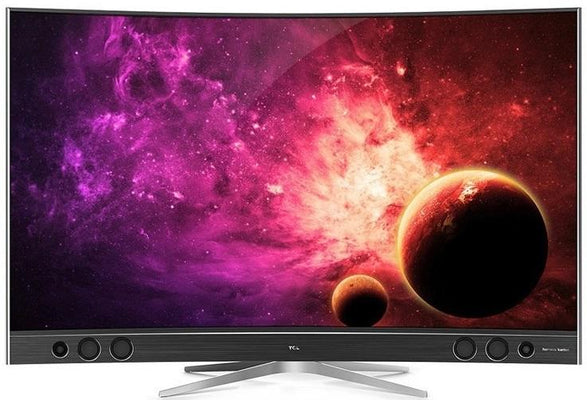

TCL Xclusive X1 U65S9906
65" 4K HDRParts
Summary
65"
4K
HDR
57.1 in
35.4 in
4.8 in
LCD
--, maximum peak of 1000 nits
10000:1
Total 40 W
Android TV 6 Marshmallow
Basics: TCL Xclusive X1 U65S9906 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- S99
- Model
- Xclusive X1 U65S9906
- Other Codes
Release Date
- Year
- 2016
LCD LED
Backlight
FALD · 288 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
Almost perfectGet almost perfect blacks, but maybe you can see artifacts in subtitles or very dark images
Technical Details
Size (inches) and resolution
- Diagonal
- 65 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:09
- Pixel density
- 68 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- FALD
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- HDR10
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- 13 ms
- Input lag
- 47 ms
- Gaming
- --
Technologies
Sound
- Speakers
- 20W 2x
- Power
- 40 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Digital Plus
Digital tuner:
- Terrestrial
-
- DVB-T2
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 4x ARC CEC MHL
- USB
- USB 2.0 1x USB 3.0 2x
- Satellite
- DVB-S2 Satellite In (Main; F-type female) 1x
- Composite
- CI
- CI+ 1x
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
Remote control
- Type of command
- RC602S + RC802N • Remote control
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design
Image gallery
With Stand
- Dimensions
- 145 cm•96 cm•34 cm
- Weight
- 39 Kg
Without Stand
- Dimensions
- 145 cm•90 cm•12.2 cm
- Weight
- 38.5 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 200 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Android TV 6 Marshmallow
Voice assistants
- Alexa
- Google Assistant
- Voice control
- No
Hardware
- SOC model
- --
- RAM
- 3GB
- ROM
- 16GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- D
- Standby consumption
- --
- Average consumption
- --
- Consumption
- 160 W
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
