Features of the 2020 TCL U55C715 55"
TCL U55C715
55" 4K HDRParts
Summary
55"
4K
HDR
48.4 in
27.7 in
3.0 in
LCD
350, maximum peak of 400 nits
4700:1
Total 20 W
Android TV 9 Pie
Basics: TCL U55C715 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- C715
- Model
- U55C715
- Other Codes
Release Date
- Year
- 2020
LCD LED
Backlight
Direct LEDDirect LED lighting distributes light more evenly across the panel
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
Quantum DotsThe quantum dots generate a greater range of colors, closer to those of the human eye
Final image
GoodGood choice for normal use, if you don't need pure blacks
Technical Details
Size (inches) and resolution
- Diagonal
- 55 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 80 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- Direct LED
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- Yes • Quantum Dots QLED
- Color spaces
- Color depth
- 10 bits (8 bits + FRC)
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- 8 ms
- Average time
- --
- Input lag
- 8 ms
- Gaming
- --
Technologies
Sound
- Speakers
- 10W 2x
- Power
- 20 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital Plus
- DTS HD
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- Yes
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 3x ARC CEC MHL
- USB
- USB 2.0 2x
- Satellite
- DVB-S DVB-S2
- Composite
- CI
- CI+ 1.4 1x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct

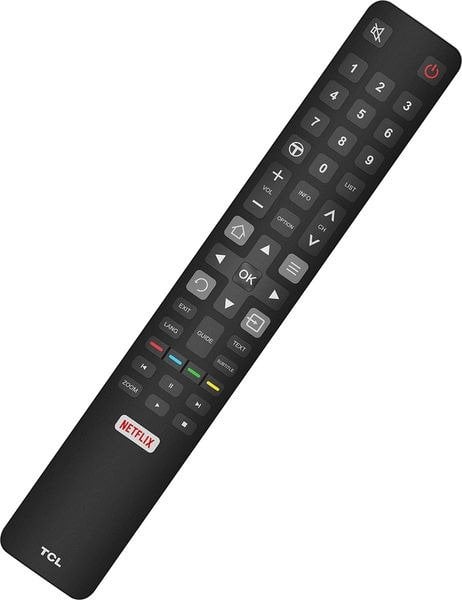

Remote control
- Type of command
- RC802N1 • Remote control
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design

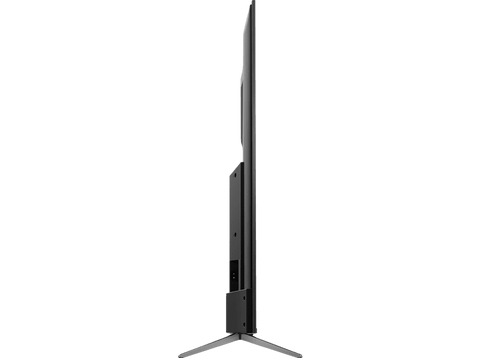

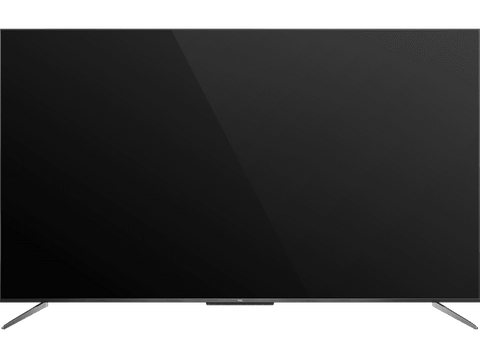

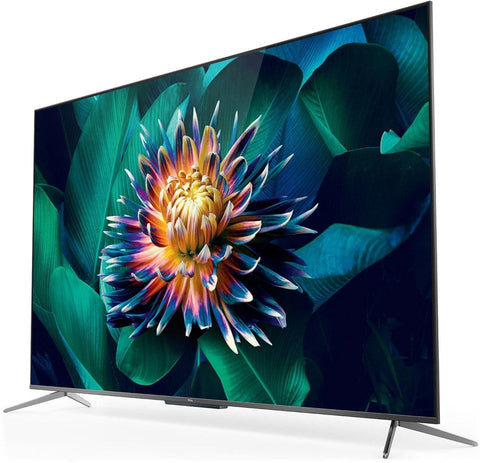

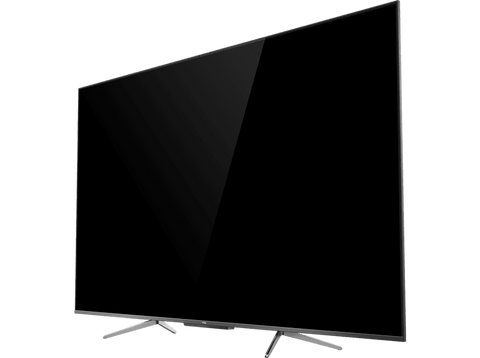

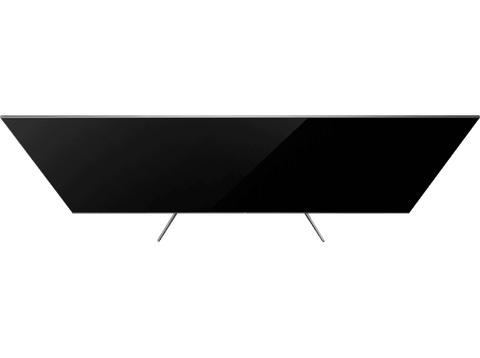

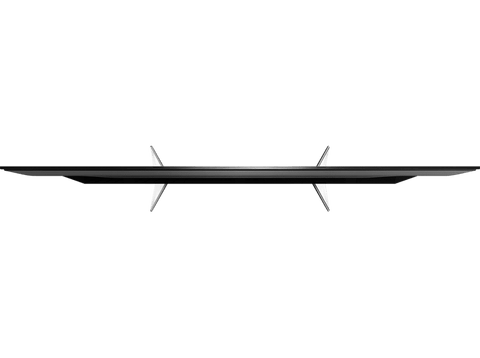

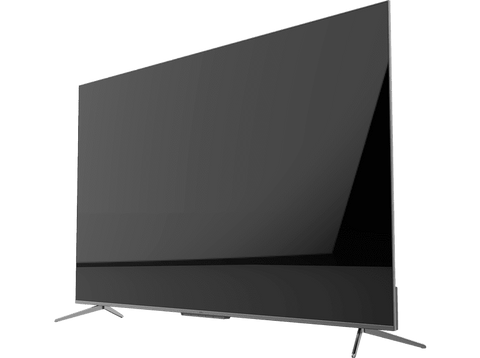

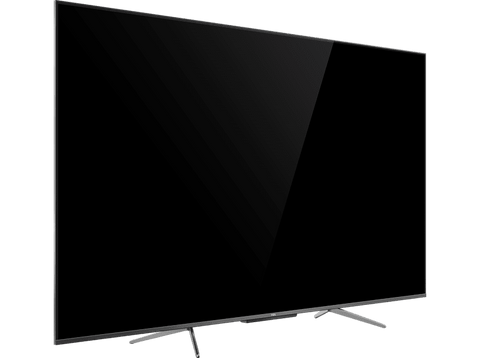

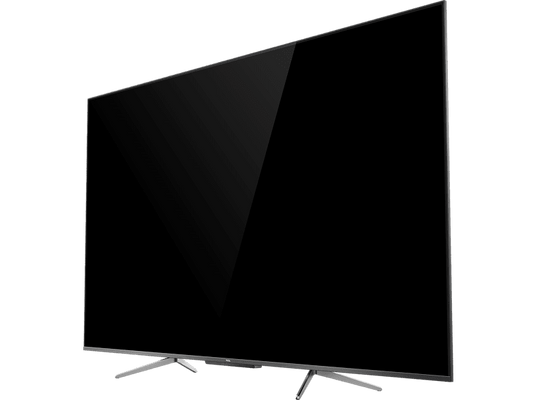

Image gallery
With Stand
- Dimensions
- 122.9 cm•76.6 cm•30 cm
- Weight
- 14.4 Kg
Without Stand
- Dimensions
- 122.9 cm•70.4 cm•7.5 cm
- Weight
- 13.2 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors

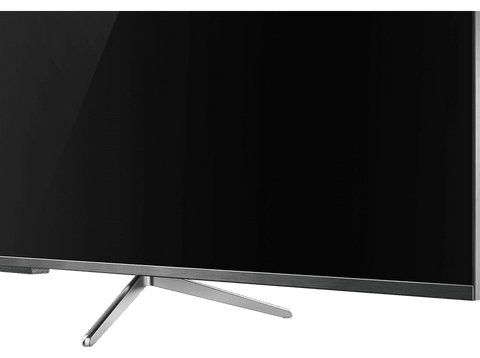

Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 200 x 300 mm
Others
- Single cable
- No
- Ambient mode
- No

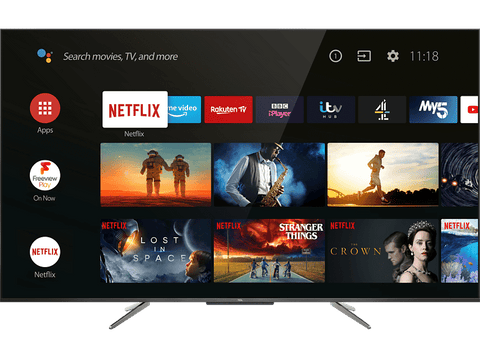

Operating System
Operating System
- SW
- Android • Android TV 9 Pie
Voice assistants
- Alexa
- Google Assistant
- Voice control
- Yes
Hardware
- SOC model
- ARM Cortex-A53
- RAM
- 2GB
- ROM
- 16GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.3 W
- Average consumption
- 120 W
- Consumption
- 140 W
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
