Features of the 2021 TCL 98R754 98"
TCL 98R754
98" 4K HDRParts
Summary
98"
4K
HDR
85.9 in
49.6 in
4.0 in
LCD
-- nits
--:1
Total 50 W
Google TV
Basics: TCL 98R754 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- R754
- Model
- 98R754
- Other Codes
Release Date
- Year
- 2021
LCD LED
Backlight
UnknownUnknown backlight technology
Technology
UnknownPanel Technology Unknown
Colorimetry
Quantum DotsThe quantum dots generate a greater range of colors, closer to those of the human eye
Technical Details
Size (inches) and resolution
- Diagonal
- 98 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 45 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- Unknown
- Backlight form
- Unknown
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- Yes • Quantum Dots QLED
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- --
Technologies
Sound
- Speakers
- 15W 2x
- Power
- 50 W
- Output channels
- 2.1 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital Plus
Digital tuner:
- Terrestrial
-
- ATSC
- Clear QAM
- Satelite
- Cable
-
- Clear QAM
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No

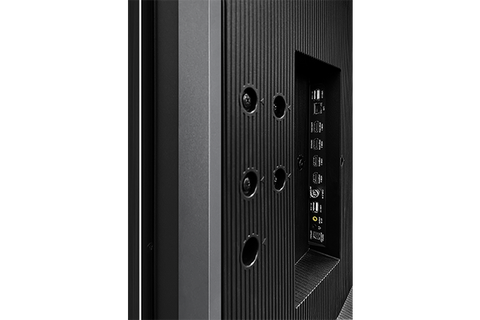

Cable connections
- RF antenna
- HDMI
- HDMI 2.1 2x HDMI 2.0 2x ARC CEC HDCP 2.3
- USB
- USB 2.0 2x
- Satellite
- Composite
- CI
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11ax (IEEE 802.11ax, Wi-Fi 6), 802.11b, 802.11g, 802.11n,
- Bluetooth
- No
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- --
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design

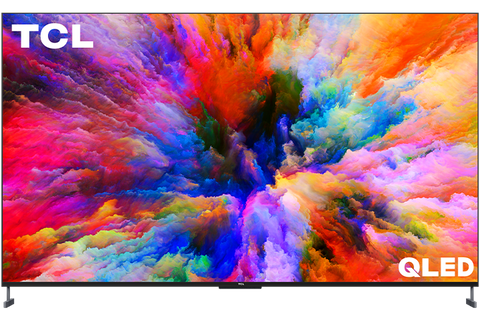

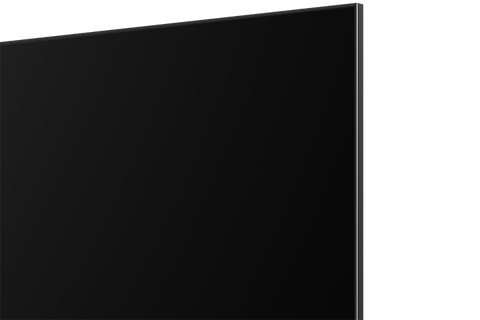

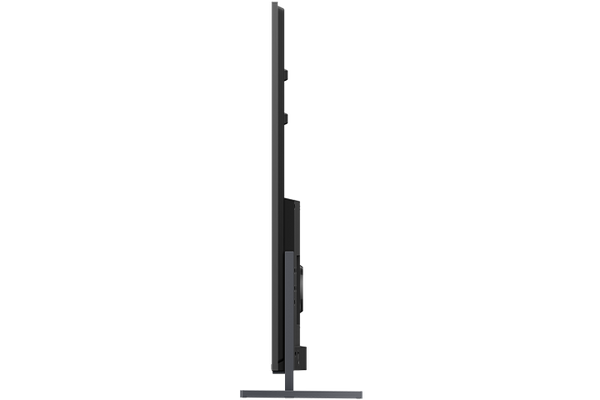

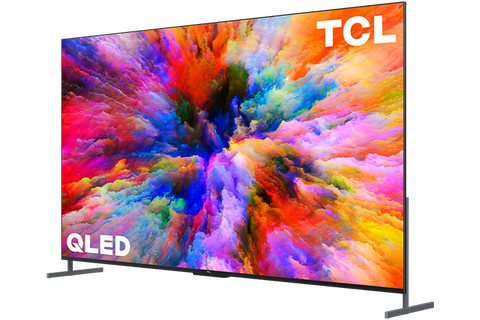

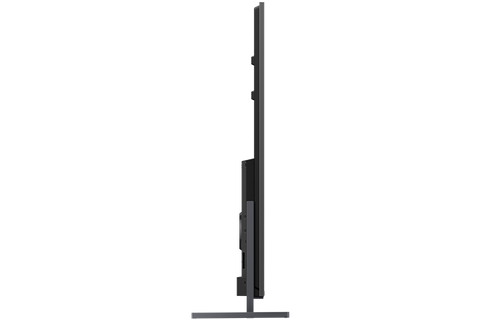

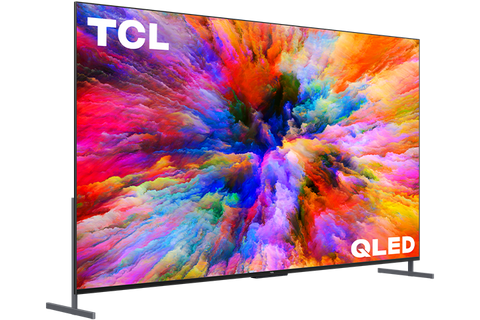

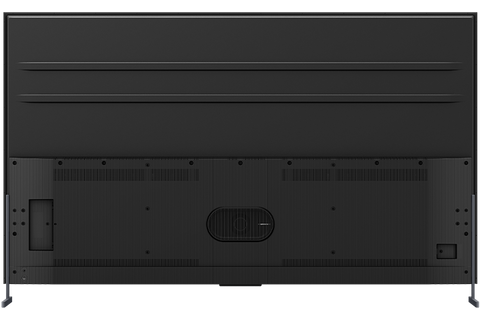

Image gallery
With Stand
- Dimensions
- 218.2 cm•134.62 cm•42.42 cm
- Weight
- 62.6 Kg
Without Stand
- Dimensions
- 218.2 cm•126 cm•10.16 cm
- Weight
- 59.6 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors

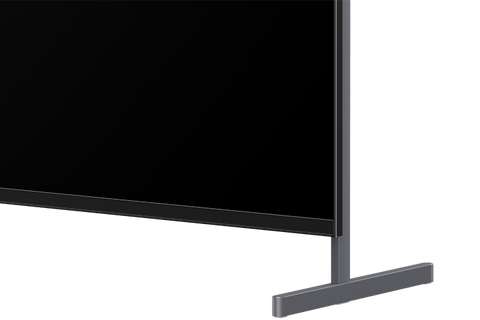

Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 850 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Google TV
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 100 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
