Features of the 2021 TCL 75R648 75"
TCL 75R648
75" 8K HDRParts
Summary
75"
8K
HDR
65.9 in
37.6 in
3.0 in
LCD
-- nits
--:1
Total 60 W
--
Basics: TCL 75R648 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- R648
- Model
- 75R648
- Other Codes
Release Date
- Year
- 2021
LCD LED
Backlight
FALD · 240 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
UnknownPanel Technology Unknown
Colorimetry
Quantum DotsThe quantum dots generate a greater range of colors, closer to those of the human eye
Technical Details
Size (inches) and resolution
- Diagonal
- 75 inches
- Resolution
- 8K • 7680 x 4320
- Aspect ratio
- 16:09
- Pixel density
- 117 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- FALD
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- Yes • Quantum Dots QLED
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- 9 ms
- Input lag
- --
- Gaming
- ALLM , Game Mode, VRR
Technologies
Sound
- Speakers
- 15W 2x
- Power
- 60 W
- Output channels
- 2.1 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital
- Dolby Digital Plus
- THX Certification
Digital tuner:
- Terrestrial
-
- ATSC
- Clear QAM
- Satelite
- Cable
-
- Clear QAM
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- Yes
Cable connections
- RF antenna
- HDMI
- HDMI 2.1 2x HDMI 2.0 2x ARC ARC;CEC CEC eARC High-bandwidth Digital Content Protection (HDCP) 2.2
- USB
- USB 2.0 1x
- Satellite
- Composite
- CI
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- No
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- --
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design

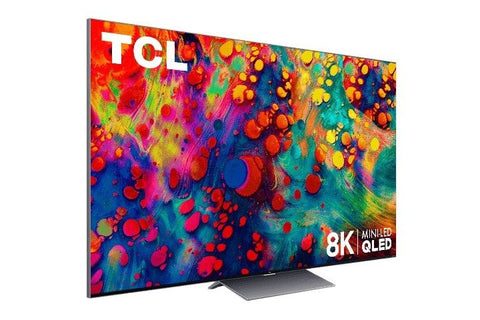

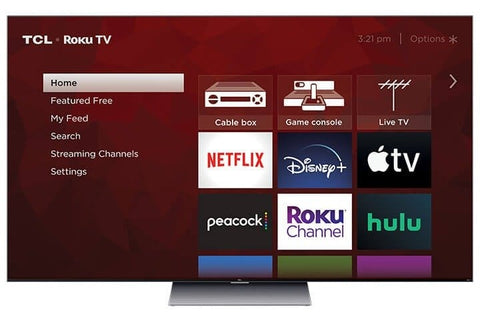

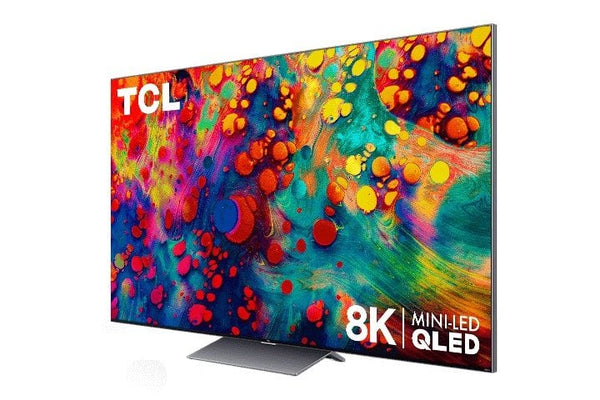

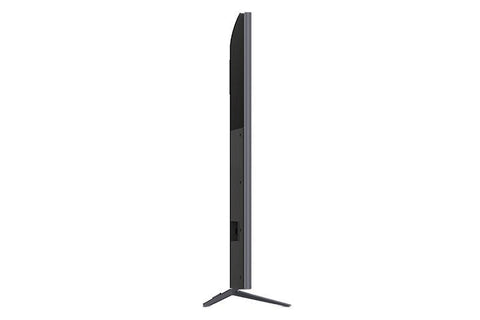

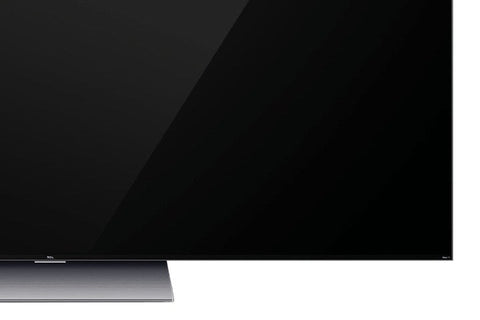

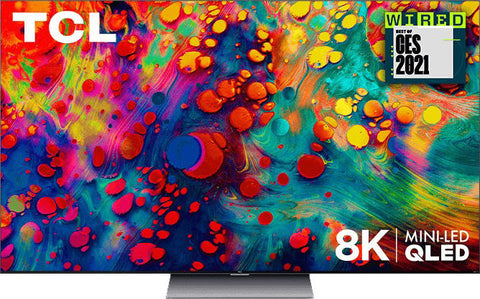

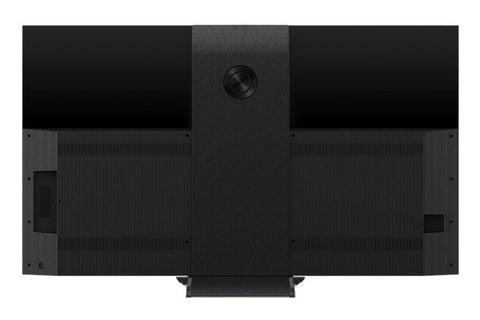

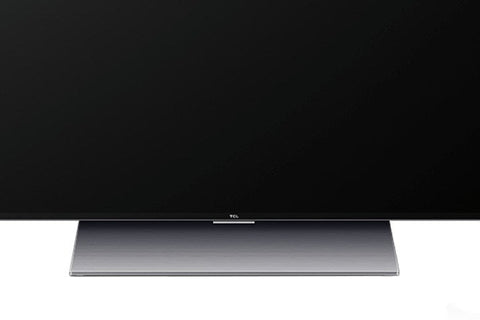

Image gallery
With Stand
- Dimensions
- 167.39 cm•101.85 cm•31.24 cm
- Weight
- 42 Kg
Without Stand
- Dimensions
- 167.39 cm•95.5 cm•7.62 cm
- Weight
- 40.5 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 400 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- --
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 100 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
