Features of the 2020 TCL 75P616 75"
TCL 75P616
75" 4K HDRParts
Summary
75"
4K
HDR
66.2 in
38.1 in
3.3 in
LCD
550 nits
3000:1
Total 50 W
Android TV 9 Pie
Basics: TCL 75P616 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- p616
- Model
- 75P616
- Other Codes
Release Date
- Year
- 2020
LCD LED
Backlight
FALD · 256 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
Quantum DotsThe quantum dots generate a greater range of colors, closer to those of the human eye
Final image
Almost perfectGet almost perfect blacks, but maybe you can see artifacts in subtitles or very dark images
Technical Details
Size (inches) and resolution
- Diagonal
- 75 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 44 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- Innolux
Backlight and contrast
- Backlight type
- LED
- Backlight form
- FALD
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- Yes • Quantum Dots QLED
- Color spaces
- Color depth
- 10 bits (8 bits + FRC)
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10+
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- 7 ms
- Average time
- --
- Input lag
- --
- Gaming
- --
Technologies
Sound
- Speakers
- 15W 2x
- Power
- 50 W
- Output channels
- 2.1 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
- DTS HD
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- Satelite
- Cable
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- 99%
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 2x HDMI 1.4 1x b High-bandwidth Digital Content Protection (HDCP) 1.4 High-bandwidth Digital Content Protection (HDCP) 2.2
- USB
- USB 2.0 2x
- Satellite
- Satellite In (F-type) 1x
- Composite
- CI
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes • Bluetooth 5.0
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- RC802N • Remote control
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- No
Design

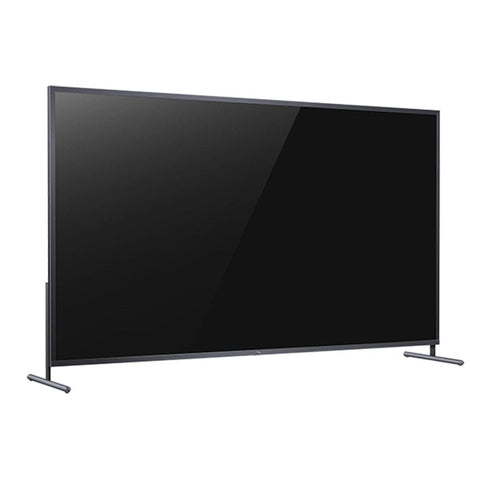

Image gallery
With Stand
- Dimensions
- 168.1 cm•105 cm•25.5 cm
- Weight
- 29.5 Kg
Without Stand
- Dimensions
- 168.1 cm•96.9 cm•8.5 cm
- Weight
- 27.7 Kg
- Screen shape
- Flat
- Frameless
- No
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 800 x 200 x 200 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Android TV 9 Pie
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
