Features of the 2023 TCL 75C845 75"
TCL 75C845
75" 4K HDRParts
Summary
75"
4K
HDR
65.8 in
37.7 in
3.9 in
LCD
2000 nits
4000:1
Total 70 W
Android TV 11
Basics: TCL 75C845 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- C84
- Model
- 75C845
- Other Codes
Release Date
- Year
- 2023
LCD LED
Backlight
MiniLED · 720 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
Quantum DotsThe quantum dots generate a greater range of colors, closer to those of the human eye
Final image
Almost perfectGet almost perfect blacks, but maybe you can see artifacts in subtitles or very dark images
Technical Details
Size (inches) and resolution
- Diagonal
- 75 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:09
- Pixel density
- 59 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- MiniLED
- Backlight form
- MiniLED
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- Yes • Quantum Dots QLED
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- Dolby Vision IQ
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- 8 ms
- Average time
- --
- Input lag
- 15 ms
- Gaming
- ALLM , FreeSync, Game Bar, Game Mode, VRR
Technologies
Sound
- Speakers
- 25W 2x
- Power
- 70 W
- Output channels
- 2.1 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital Plus
- DTS
- Onkyo sound system
Digital tuner:
- Terrestrial
-
- ISDB-T
- Satelite
- Cable
- ATSC & QAM
- No
- ISDB
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.1 4x High-bandwidth Digital Content Protection (HDCP) 2.2
- USB
- USB 3.0 1x
- Satellite
- Satellite In (F-type female) 1x
- Composite
- CI
- CI+ 1.4 1x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes • Bluetooth 5.2
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- • Remote controls
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- No
Design

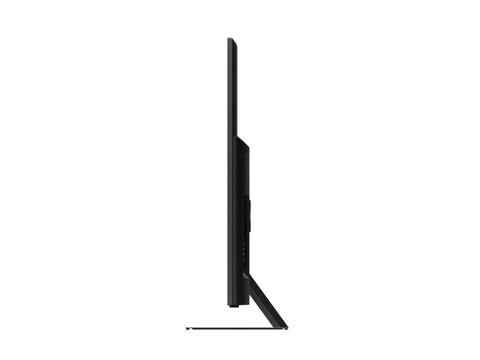

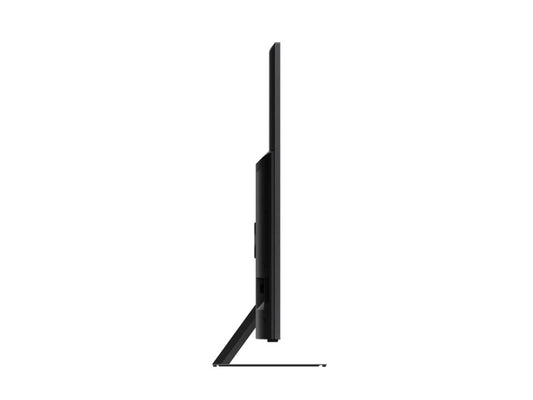

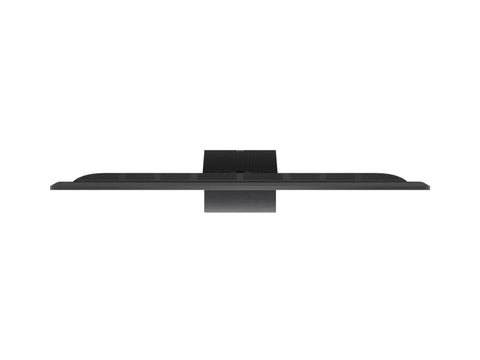

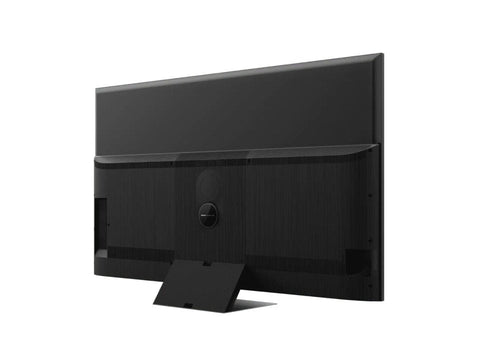

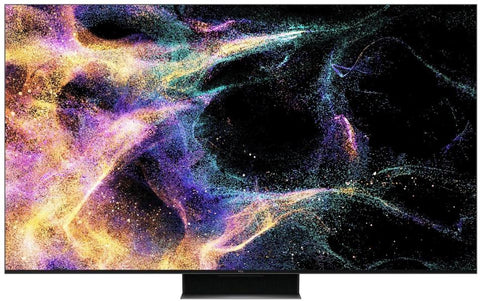

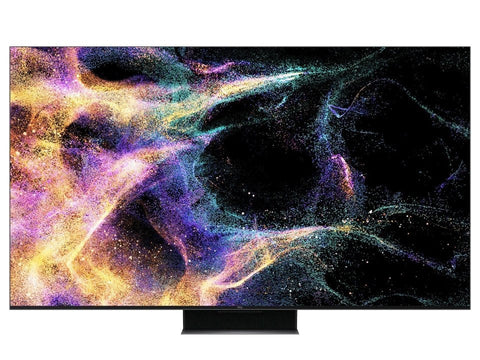

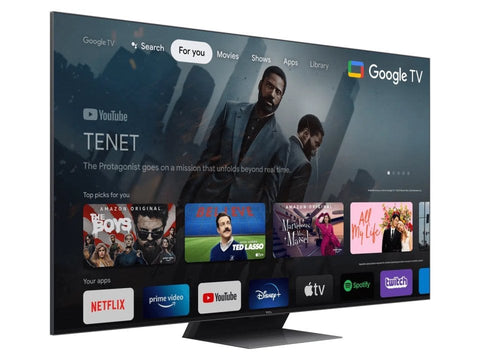

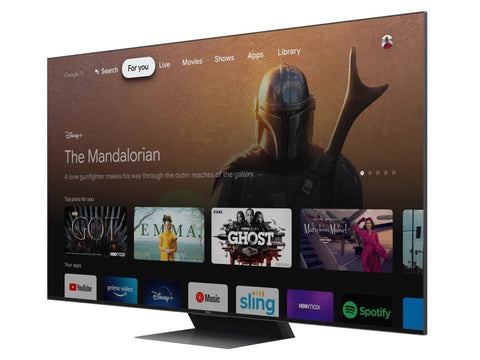

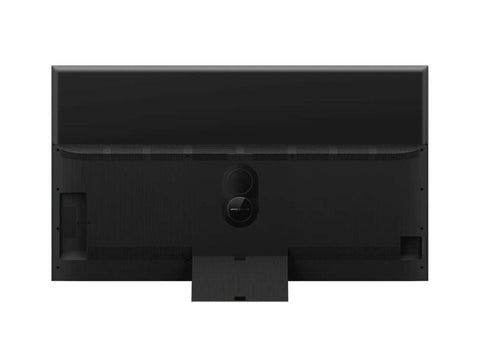

Image gallery
With Stand
- Dimensions
- 167.1 cm•102.8 cm•33 cm
- Weight
- 29.5 Kg
Without Stand
- Dimensions
- 167.1 cm•95.8 cm•9.9 cm
- Weight
- 29 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 400 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Android TV 11
Voice assistants
- Alexa
- Google Assistant
- Yes
- Voice control
Hardware
- SOC model
- --
- RAM
- 2GB
- ROM
- 32GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- --
- Average consumption
- 172 W
- Consumption
- 236 W
Power supply
- Power supply
- 100 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
