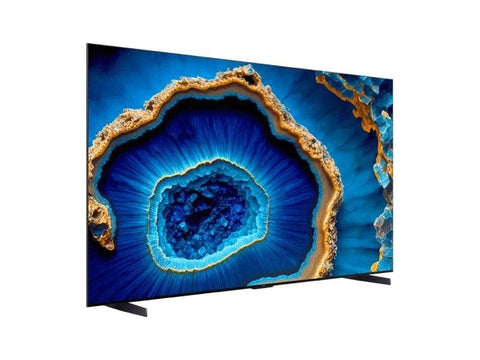

Features of the 2023 TCL 75C755 75"
TCL 75C755
75" 4K HDRParts
Summary
75"
4K
HDR
65.6 in
37.5 in
2.8 in
LCD
1300, maximum peak of 1300 nits
6000:1
Total 30 W
Android TV 11
Basics: TCL 75C755 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- C755
- Model
- 75C755
- Other Codes
Release Date
- Year
- 2023
LCD LED
Backlight
MiniLED · 500 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
Almost perfectGet almost perfect blacks, but maybe you can see artifacts in subtitles or very dark images
Technical Details
Size (inches) and resolution
- Diagonal
- 75 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 59 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 144 Hz
- Panel Manufacturer
- CSOT
Backlight and contrast
- Backlight type
- MiniLED
- Backlight form
- MiniLED
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- FreeSync
Technologies
Sound
- Speakers
- 15W 2x
- Power
- 30 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital Plus
- DTS HD
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- DVB-C2
- Satelite
- Cable
-
- DVB-C
- DVB-C2
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- SECAM
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- HDMI
- HDMI 2.0 2x HDMI 2.1 2x HDCP 2.3
- USB
- USB 2.0 1x USB 3.0 1x
- Satellite
- DVB-S DVB-S2
- Composite
- CI
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11ax (IEEE 802.11ax, Wi-Fi 6), 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- --
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- No
Design

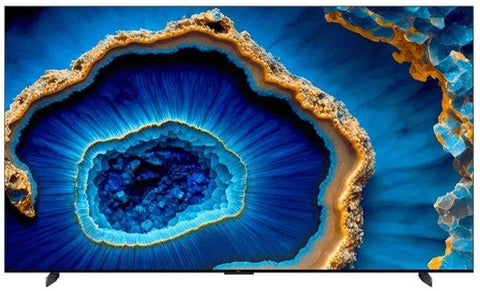

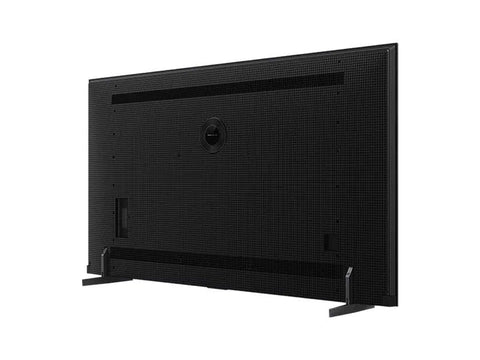

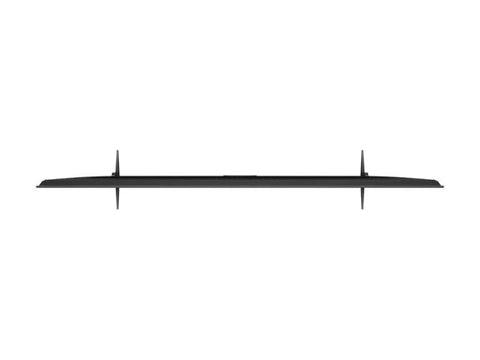

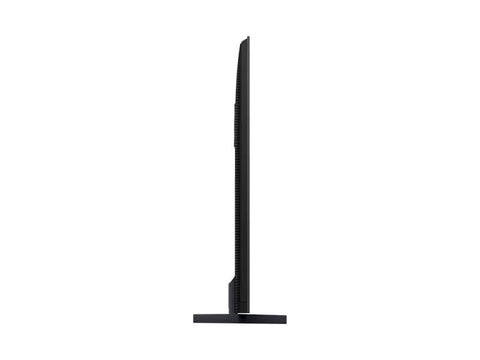

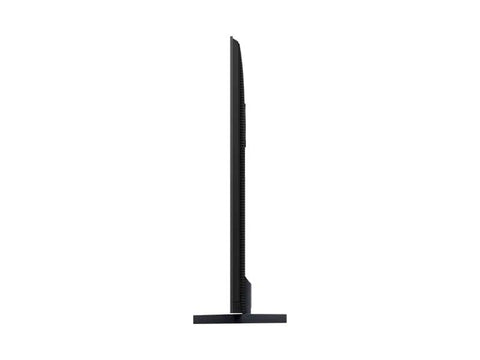

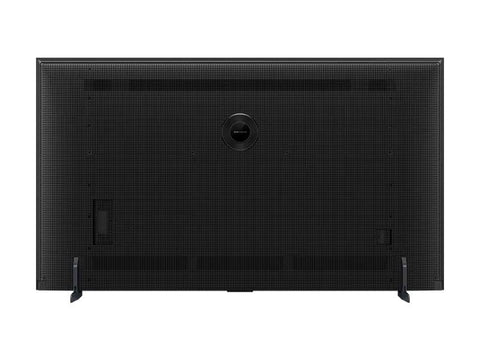

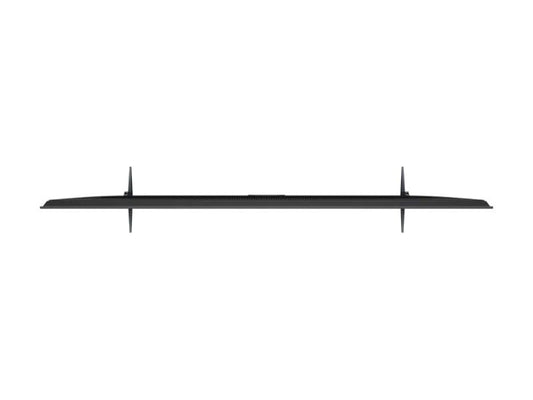

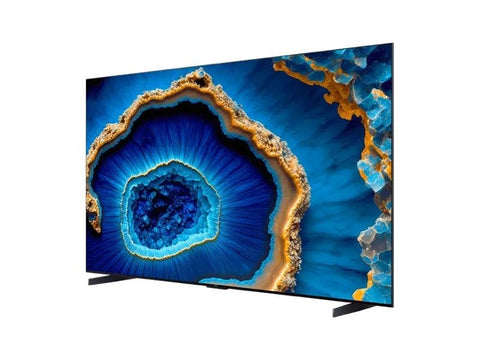

Image gallery
With Stand
- Dimensions
- 166.7 cm•102.5 cm•34 cm
- Weight
- 31.2 Kg
Without Stand
- Dimensions
- 166.7 cm•95.22 cm•7.18 cm
- Weight
- 29.4 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 400 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Android TV 11
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- ?
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 100 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
