Features of the 2021 TCL 65R648 65"

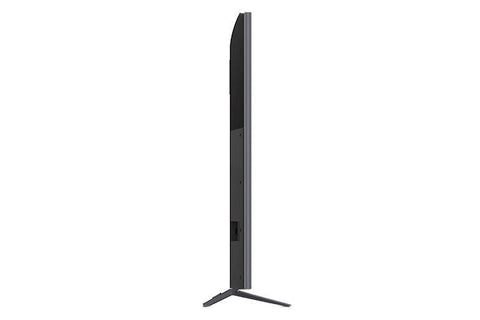

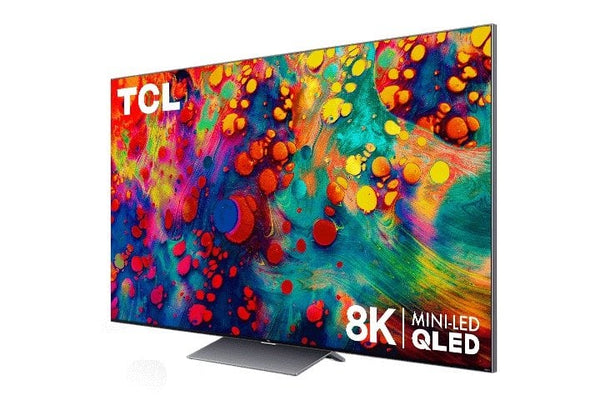

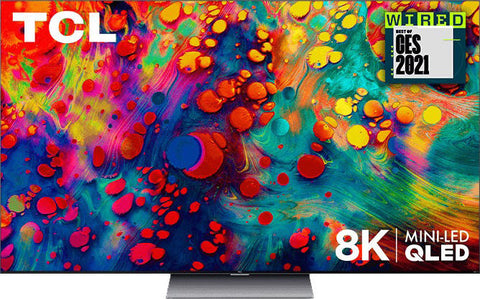

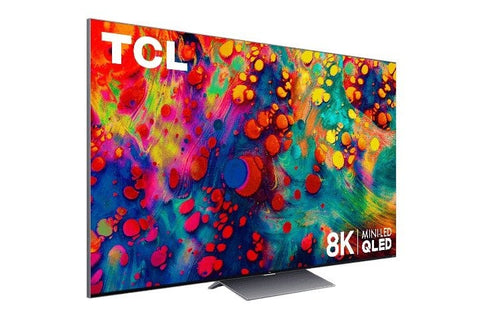

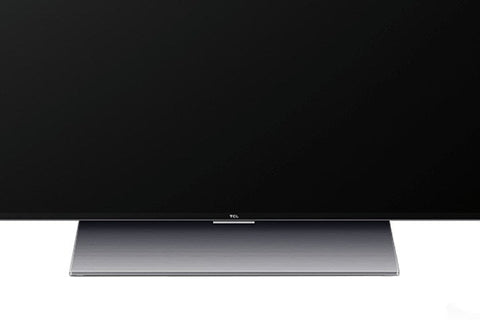

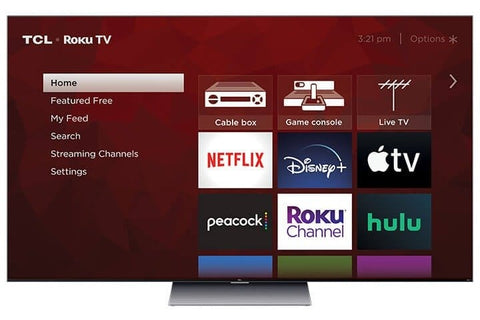

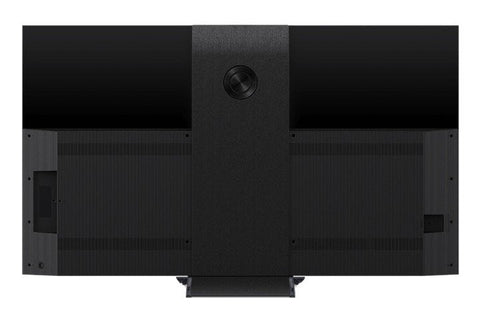

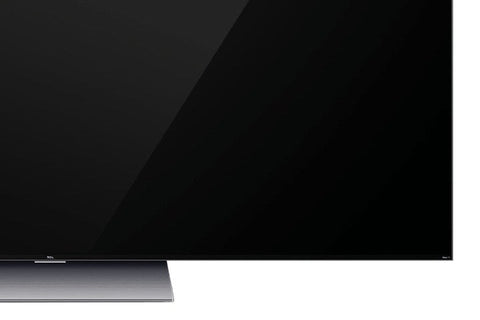

TCL 65R648

65" 8K HDR

Parts

Summary

summary-diagonal-icon

65"
8K
HDR

summary-dimensions-icon

57 in
32.7 in
3.0 in

summary-panel-icon

LCD

summary-contrast-icon

-- nits
--:1

summary-sound-icon

Total 60 W

summary-sound-icon
summary-chip-icon

--

Basics: TCL 65R648 specs: Technical sheet

Brand

Brand
TCL
Serie
R648
Model
65R648
Other Codes

Release Date

Year
2021


LCD LED

backlight-unknown

Backlight

FALD · 160 zones

The panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks

tech-unknown

Technology

Unknown

Panel Technology Unknown

colorimetry

Colorimetry

Quantum Dots

The quantum dots generate a greater range of colors, closer to those of the human eye

Technical Details

Size (inches) and resolution

Diagonal
65 inches
Resolution
8K • 7680 x 4320
Aspect ratio
16:09
Pixel density
136 ppi

Technology

Panel type
LCD technology
Subpixel type
RGB
Refresh rate
120 Hz
Panel Manufacturer
--

Backlight and contrast

Backlight type
LED
Backlight form
FALD
Brightness
Contast
Light sensor
No

Colorimetry

Quantum Dots
Yes • Quantum Dots QLED
Color spaces
Color depth
10 bits

HDR

Tradename
HDR technologies
  • Dolby Vision
  • HDR10
  • HLG

Crystal

Anti-glare filter
--
Vision angle
Horizontal
Vertical

Processing

These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...

Image processor

Response times

Minimum time
--
Average time
9 ms
Input lag
--
Gaming
ALLM , Game Mode, VRR

Technologies

Sound

Speakers
15W 2x
Power
60 W
Output channels
2.1 CH

Sound Technologies

Technologies
  • Dolby Atmos
  • Dolby Digital
  • Dolby Digital Plus
  • THX Certification

Digital tuner:

Terrestrial
  • ATSC
  • Clear QAM
Satelite
Cable
  • Clear QAM
ATSC & QAM
No
ISDB
No
DTMB
No

Analog tuner

NTSC
--
PAL
Yes
SECAM
Yes

Hybrid television

HbbTV
Yes

Cable connections

RF antenna
HDMI
HDMI 2.1 2x HDMI 2.0 2x ARC ARC;CEC CEC eARC High-bandwidth Digital Content Protection (HDCP) 2.2
USB
USB 2.0 1x
Satellite
Composite
CI
Optical Audio
3.5mm audio
3.5 mm Audio Out 1x
Ethernet
Ethernet RJ45 1x

Wireless connections

Wi-Fi
Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
Bluetooth
No

Content delivery

Chromecast
DLNA
Wi-Fi Direct
Yes

Remote control

Type of command
--
Control of multiple devices
Yes

Others

PVR recording
No
PIP
No

Operating System

Operating System

SW
--

Voice assistants

Alexa
Yes
Google Assistant
Yes
Voice control

Hardware

SOC model
--
RAM
--
ROM
--

Consumption

HbbTV

Cable connections

Energy efficiency
G
Standby consumption
0.5 W
Average consumption
--
Consumption
--

Power supply

Power supply
100 V - 120 V (volts) 220 V - 240 V (volts)
Wi-Fi
Power supply frequency
50 Hz - 60 Hz (hertz)

Certificates

Certificates
