Features of the 2017 TCL 55P607 55"

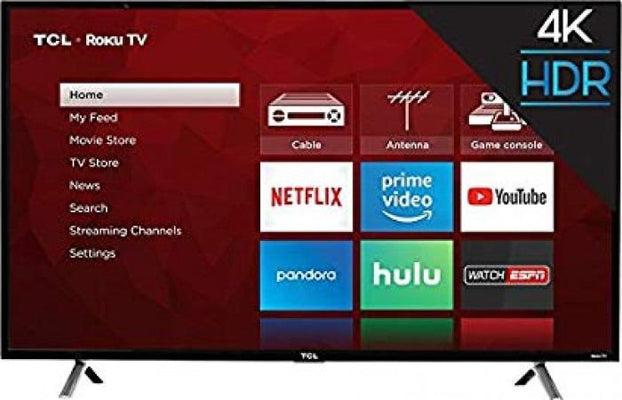

TCL 55P607
55" 4K HDRParts
Summary
55"
4K
HDR
49 in
28.3 in
3.0 in
LCD
--, maximum peak of 750 nits
7500:1
Total 16 W
--
Basics: TCL 55P607 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- P607
- Model
- 55P607
- Other Codes
Release Date
- Year
- 2017
LCD LED
Backlight
FALD · 72 zonesThe panel illuminates uniformly with a series of LEDs that change intensity, getting almost perfect blacks
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
Almost perfectGet almost perfect blacks, but maybe you can see artifacts in subtitles or very dark images
Technical Details
Size (inches) and resolution
- Diagonal
- 55 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 80 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- FALD
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits (8 bits + FRC)
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- 11 ms
- Input lag
- 15 ms
- Gaming
- --
Technologies
Sound
- Speakers
- 8W 2x
- Power
- 16 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Digital
- Dolby Digital Plus
Digital tuner:
- Terrestrial
-
- ATSC
- Clear QAM
- Satelite
- Cable
-
- Clear QAM
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- HDMI
- HDMI 2.0 3x ARC CEC
- USB
- USB 2.0 1x
- Satellite
- Satellite In (Main; F-type female) 1x
- Composite
- CI
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- No
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
Remote control
- Type of command
- --
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design
Image gallery
With Stand
- Dimensions
- 124.46 cm•76.45 cm•21.08 cm
- Weight
- 15 Kg
Without Stand
- Dimensions
- 124.46 cm•71.88 cm•7.62 cm
- Weight
- 14.8 Kg
- Screen shape
- Flat
- Frameless
- No
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 200 x 200 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- --
Voice assistants
- Alexa
- Google Assistant
- Voice control
- No
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- --
- Average consumption
- 90 W
- Consumption
- --
Power supply
- Power supply
- 100 V - 120 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
