Features of the 2018 TCL 43S515 43"

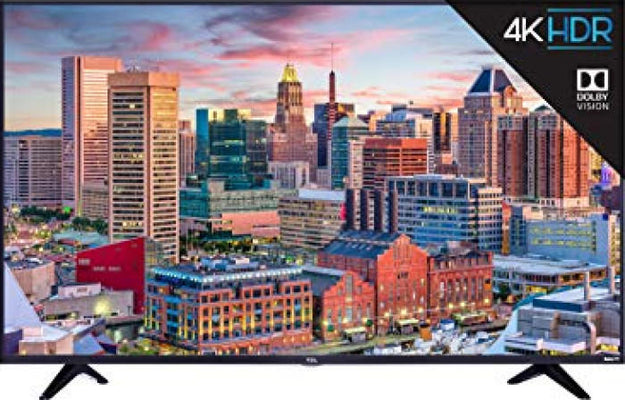

TCL 43S515
43" 4K HDRParts
Summary
43"
4K
HDR
37.8 in
22.1 in
2.9 in
LCD
-- nits
--:1
Total 16 W
--
Basics: TCL 43S515 specs: Technical sheet
Brand
- Brand
- TCL
- Serie
- S5
- Model
- 43S515
- Other Codes
Release Date
- Year
- 2018
LCD LED
Backlight
Edge LEDEdge LED lighting illuminates the panel from the sides with worse light distribution
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
GoodGood choice for normal use, if you don't need pure blacks
Technical Details
Size (inches) and resolution
- Diagonal
- 43 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 103 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- Edge LED
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits (8 bits + FRC)
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- --
Technologies
Sound
- Speakers
- 8W 2x
- Power
- 16 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Atmos
- Dolby Digital
- Dolby Digital Plus
Digital tuner:
- Terrestrial
-
- ATSC
- Clear QAM
- Satelite
- Cable
-
- Clear QAM
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- HDMI
- HDMI 2.0 3x ARC CEC
- USB
- USB 2.0 1x
- Satellite
- Satellite In (Main; F-type female) 1x
- Composite
- CI
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- No
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
Remote control
- Type of command
- RC280 (43S515) • Remote control
- Control of multiple devices
- Yes
Others
- PVR recording
- No
- PIP
- No
Design
Image gallery
With Stand
- Dimensions
- 96 cm•60.96 cm•21.34 cm
- Weight
- 8.6 Kg
Without Stand
- Dimensions
- 96 cm•56.13 cm•7.37 cm
- Weight
- 8.4 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 200 x 200 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- --
Voice assistants
- Alexa
- Google Assistant
- Voice control
- No
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- --
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 100 V - 120 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
- RoHS
