Features of the 2024 Panasonic TX-77Z93A 77"
Panasonic TX-77Z93A
77" 4K HDRParts
Summary
77"
4K
HDR
67.8 in
41.3 in
3.1 in
OLED
-- nits
Infinite:1
Total 170 W
--
Basics: Panasonic TX-77Z93A specs: Technical sheet
Brand
- Brand
- Panasonic
- Serie
- Z93A
- Model
- TX-77Z93A
- Other Codes
Release Date
- Year
- 2024
LCD LED
Technology
OLED WRGBOLED WRGB panels achieve an infinite contrast, the additional white LED provides extra brightness
Final image
PerfectAn image with pure blacks, maybe the brightness and the life time are slightly lower than on an LCD panel
Technical Details
Size (inches) and resolution
- Diagonal
- 77 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 57 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- WRGB
- Refresh rate
- 144 Hz
- Panel Manufacturer
- LG Display
Backlight and contrast
- Backlight type
- Self-luminous pixels
- Backlight form
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- FreeSync, Game Mode
Technologies
Sound

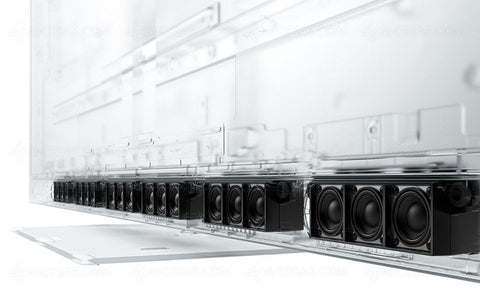

- Speakers
- 45W 2x 15W 2x 15W 2x
- Power
- 170 W
- Output channels
- 7.0 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- SECAM
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 2x HDMI 2.1 2x HDCP 2.3
- USB
- USB 2.0 2x USB 3.0 1x
- Satellite
- DVB-S DVB-S2 Satellite In (Sub; F-type female) 1x Satellite In (Main; F-type female) 1x
- Composite
- CI
- CI+ 1.4 (ECP) 2x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- --
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- No
Design
Image gallery
With Stand
- Dimensions
- 172.3 cm•107.3 cm•35 cm
- Weight
- 51 Kg
Without Stand
- Dimensions
- 172.3 cm•105 cm•7.8 cm
- Weight
- 44 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors

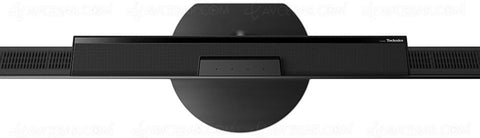

Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 300 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- --
Voice assistants
- Alexa
- Google Assistant
- Voice control
- No
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- ?
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- 568 W
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
