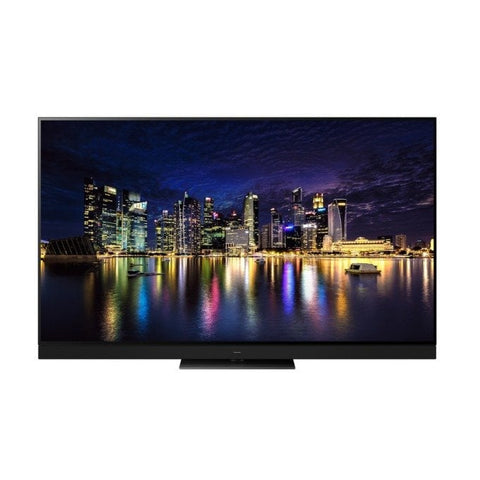

Features of the 2023 Panasonic TX-77MZ2000 77"
Panasonic TX-77MZ2000
77" 4K HDRParts
Summary
77"
4K
HDR
67.8 in
41.3 in
3.0 in
OLED
1500 nits
Infinite:1
Total 165 W
my Home Screen 8.0
Basics: Panasonic TX-77MZ2000 specs: Technical sheet
Brand
- Brand
- Panasonic
- Serie
- MZ2000
- Model
- TX-77MZ2000
- Other Codes
Release Date
- Year
- 2023
LCD LED
Technology
OLED WRGBOLED WRGB panels achieve an infinite contrast, the additional white LED provides extra brightness
Final image
PerfectAn image with pure blacks, maybe the brightness and the life time are slightly lower than on an LCD panel
Technical Details
Size (inches) and resolution
- Diagonal
- 77 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 57 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- WRGB
- Refresh rate
- 120 Hz
- Panel Manufacturer
- LG Display
Backlight and contrast
- Backlight type
- Self-luminous pixels
- Backlight form
- Brightness
- Contast
- Light sensor
- Sí
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- ALLM , FreeSync, Game Mode, QMS-VRR , VRR , Nvidia G-Sync
Technologies
Sound
- Speakers
- 35W 2x 15W 3x 15W 2x
- Power
- 165 W
- Output channels
- 7.0 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 2x HDMI 2.1 2x HDCP 2.3
- USB
- USB 2.0 2x USB 3.0 1x
- Satellite
- DVB-S DVB-S2 Satellite In (Main; F-type female) 1x Satellite In (Sub; F-type female) 1x
- Composite
- CI
- CI+ 1.4 (ECP) 2x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Yes
- Wi-Fi Direct
- Yes

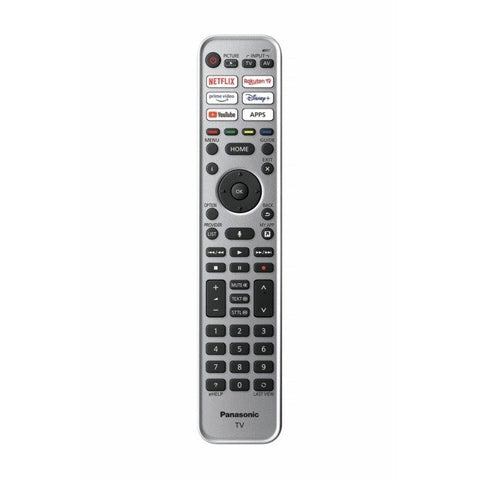

Remote control
- Type of command
- • Remote control
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- Yes • Picture-in-Picture
Design

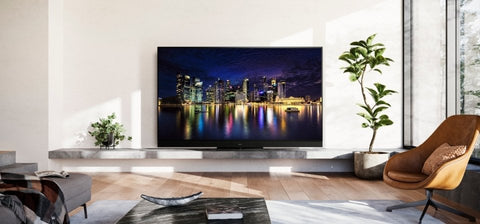

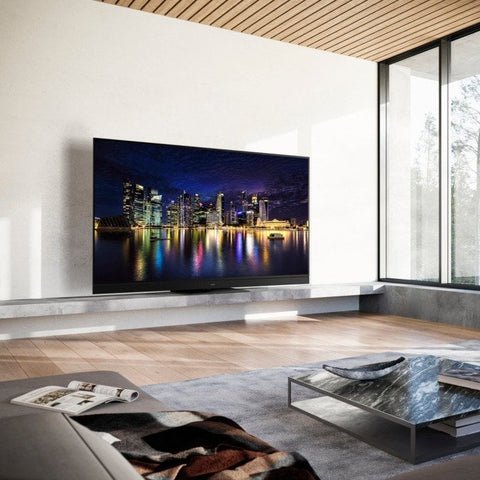

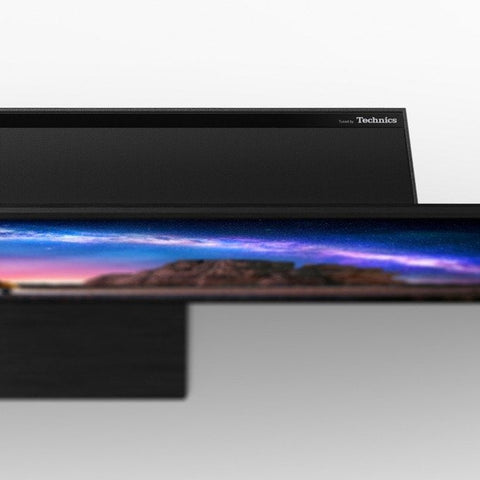

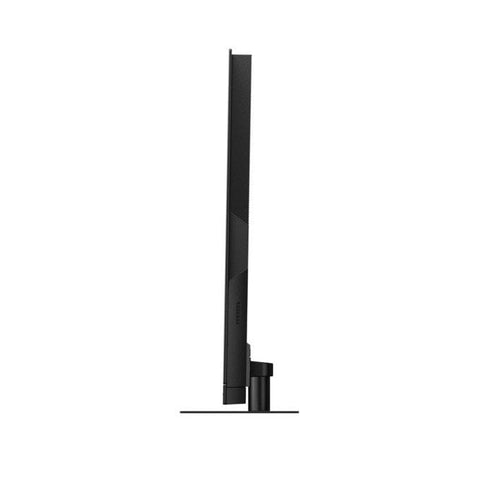

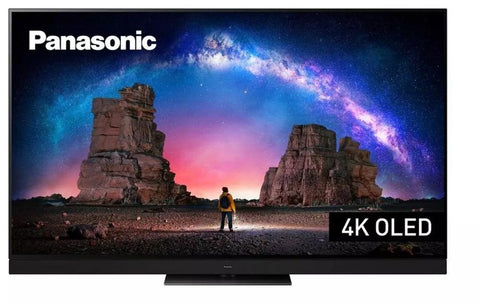

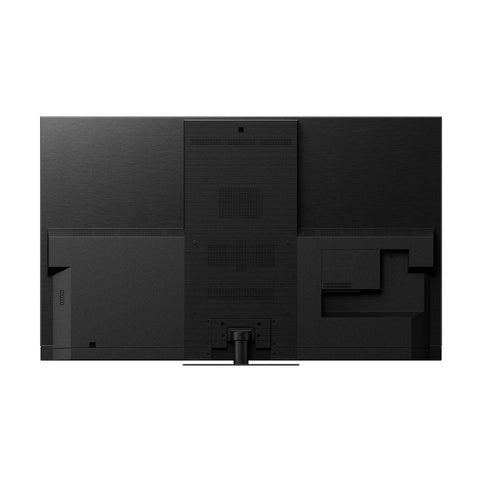

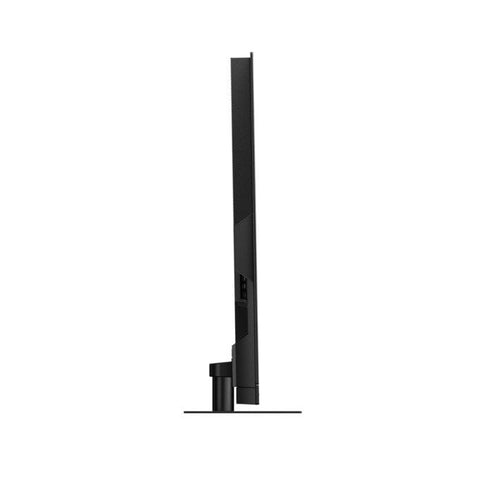

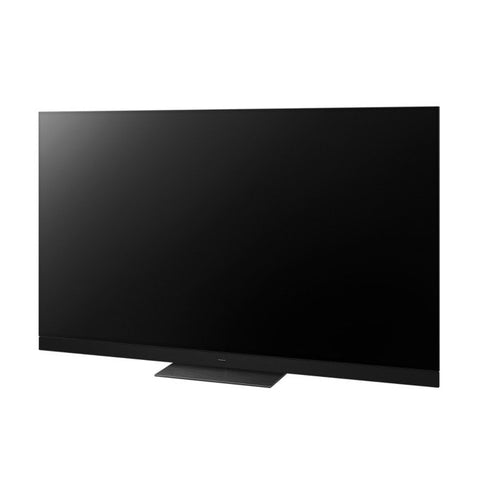

Image gallery
With Stand
- Dimensions
- 172.3 cm•105 cm•23.5 cm
- Weight
- 43 Kg
Without Stand
- Dimensions
- 172.3 cm•105 cm•7.5 cm
- Weight
- 43 Kg
- Screen shape
- Flat
- Frameless
- No
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 400 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- my Home Screen • my Home Screen 8.0
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- 2GB
- ROM
- 8GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- 126 W
- Consumption
- 569 W
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
