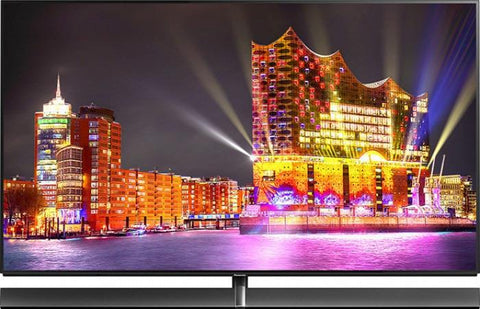

Features of the 2017 Panasonic TX-77EZ1000 77"
Panasonic TX-77EZ1000
77" 4K HDRParts
Summary
77"
4K
HDR
67.8 in
39.3 in
2.0 in
OLED
--, maximum peak of 800 nits
Infinite:1
Total 80 W
--
Basics: Panasonic TX-77EZ1000 specs: Technical sheet
Brand
- Brand
- Panasonic
- Serie
- EZ1000
- Model
- TX-77EZ1000
- Other Codes
Release Date
- Year
- 2017
LCD LED
Technology
OLED WRGBOLED WRGB panels achieve an infinite contrast, the additional white LED provides extra brightness
Final image
PerfectAn image with pure blacks, maybe the brightness and the life time are slightly lower than on an LCD panel
Technical Details
Size (inches) and resolution
- Diagonal
- 77 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 57 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- WRGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- LG Display
Backlight and contrast
- Backlight type
- Self-luminous pixels
- Backlight form
- Brightness
- Contast
- Light sensor
- Sí
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- HDR10
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- --
Technologies
Sound
- Speakers
- 20W 2x 20W 2x
- Power
- 80 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Digital
- Dolby Digital Plus
- THX Certification
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 4x ARC CEC
- USB
- USB 2.0 2x USB 3.0 1x
- Satellite
- DVB-S2 Satellite In (Sub; F-type female) 1x Satellite In (Main; F-type female) 1x
- Composite
- CI
- CI+ 1.3 2x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct
Remote control
- Type of command
- • Touch pad controller
- Control of multiple devices
- Yes • Viera Link
Others
- PVR recording
- Yes • PVR
- PIP
- Yes • Picture-in-Picture
Design
Image gallery
With Stand
- Dimensions
- 172.3 cm•109 cm•38.8 cm
- Weight
- 44.5 Kg
Without Stand
- Dimensions
- 172.3 cm•99.8 cm•5.2 cm
- Weight
- 35 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 300 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- --
Voice assistants
- Alexa
- Google Assistant
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- --
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
