Features of the 2023 Panasonic TX-55MZ980 55"

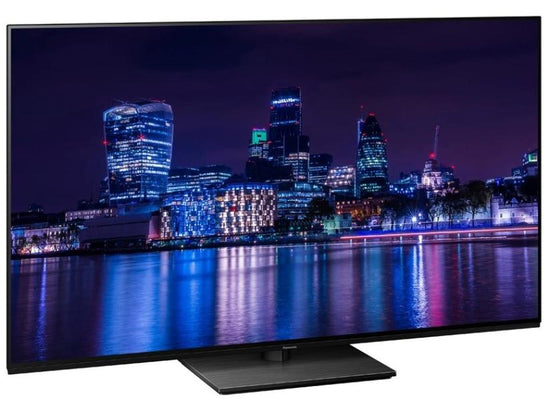

Panasonic TX-55MZ980
55" 4K HDRParts
Summary
55"
4K
HDR
48.3 in
28.0 in
2.7 in
OLED
-- nits
Infinite:1
Total 30 W
my Home Screen 8.0
Basics: Panasonic TX-55MZ980 specs: Technical sheet
Brand
- Brand
- Panasonic
- Serie
- MZ980
- Model
- TX-55MZ980
- Other Codes
Release Date
- Year
- 2023
LCD LED
Technology
OLEDOLED panels achieve an infinite contrast in a smaller thickness
Final image
PerfectAn image with pure blacks, maybe the brightness and the life time are slightly lower than on an LCD panel
Technical Details
Size (inches) and resolution
- Diagonal
- 55 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 68 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- LG Display
Backlight and contrast
- Backlight type
- Self-luminous pixels
- Backlight form
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- Dolby Vision IQ
- HDR10
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- ALLM , Game Bar, Game Mode, QMS-VRR , VRR
Technologies
Sound
- Speakers
- 15W 2x
- Power
- 30 W
- Output channels
- 2.0 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.0 3x HDMI 2.1 2x HDCP 2.3
- USB
- USB 2.0 2x USB 3.0 1x
- Satellite
- DVB-S DVB-S2 Satellite In (F-type female) 1x
- Composite
- CI
- CI+ 1.4 (ECP) 2x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- • Remote control
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- No
Design
Image gallery
With Stand
- Dimensions
- 122.7 cm•76.5 cm•30.3 cm
- Weight
- 18.5 Kg
Without Stand
- Dimensions
- 122.7 cm•71.1 cm•6.9 cm
- Weight
- 14.5 Kg
- Screen shape
- Flat
- Frameless
- Yes
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 300 x 300 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- my Home Screen • my Home Screen 8.0
Voice assistants
- Alexa
- Yes
- Google Assistant
- Yes
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- 66 W
- Consumption
- 83 W
Power supply
- Power supply
- 110 V - 120 V (volts) 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
