Features of the 2022 Panasonic TX-55LX704 55"
Panasonic TX-55LX704
55" 4K HDRParts
Summary
55"
4K
HDR
48.6 in
28.3 in
3.3 in
LCD
-- nits
--:1
Total 20 W
my Home Screen 7.0
Basics: Panasonic TX-55LX704 specs: Technical sheet
Brand
- Brand
- Panasonic
- Serie
- TX-LXW704
- Model
- TX-55LX704
- Other Codes
Release Date
- Year
- 2022
LCD LED
Backlight
Edge LEDEdge LED lighting illuminates the panel from the sides with worse light distribution
Technology
VAVA technology allows a greater contrast than an IPS, against losing slightly in viewing angle
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
GoodGood choice for normal use, if you don't need pure blacks
Technical Details
Size (inches) and resolution
- Diagonal
- 55 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:9
- Pixel density
- 80 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED
- Backlight form
- Edge LED
- Brightness
- Contast
- Light sensor
- Sí
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 10 bits (8 bits + FRC)
HDR
- Tradename
- HDR technologies
-
- Dolby Vision
- HDR10+
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- --
- Average time
- --
- Input lag
- --
- Gaming
- FreeSync, Game Mode
Technologies
Sound
- Speakers
- 10W 2x
- Power
- 20 W
- Output channels
- 2.0 CH
Sound Technologies
- Technologies
-
- Dolby Atmos
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- Satelite
- Cable
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- No
Cable connections
- RF antenna
- HDMI
- HDMI 2.0 3x High-bandwidth Digital Content Protection (HDCP) 2.2
- USB
- USB 2.0 2x
- Satellite
- Composite
- CI
- CI+ 1.4 1x
- Optical Audio
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- Yes
- DLNA
- Yes
- Wi-Fi Direct
- Yes
Remote control
- Type of command
- --
- Control of multiple devices
Others
- PVR recording
- No
- PIP
- Yes • Picture-in-Picture
Design

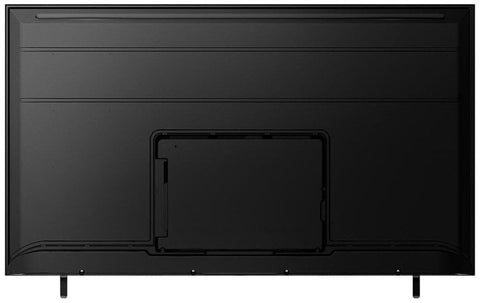

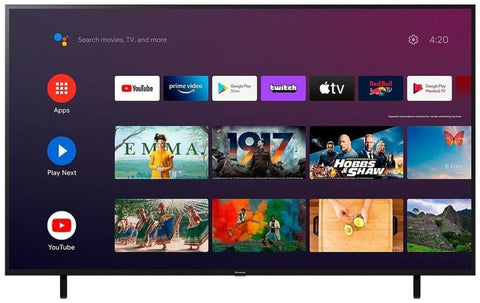

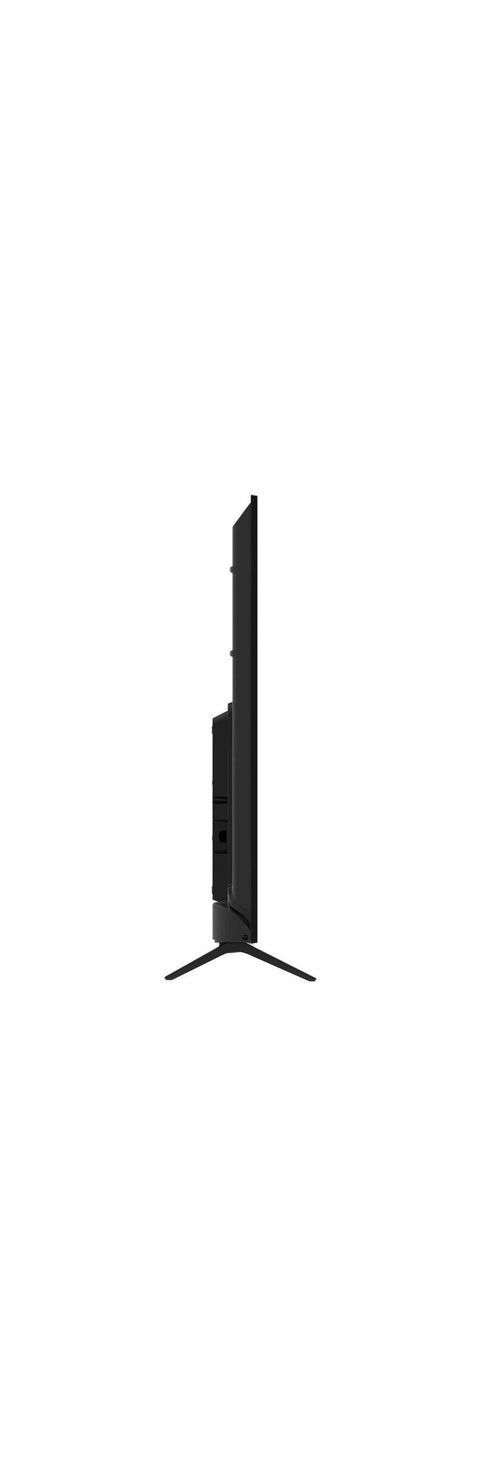

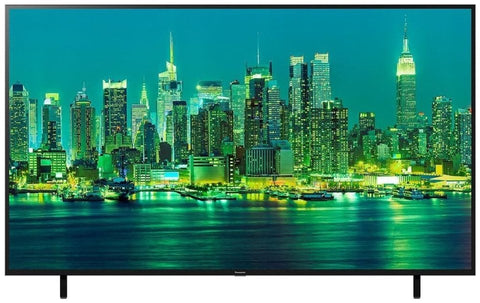

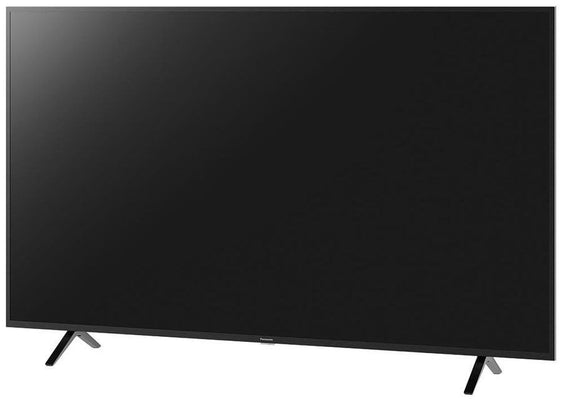

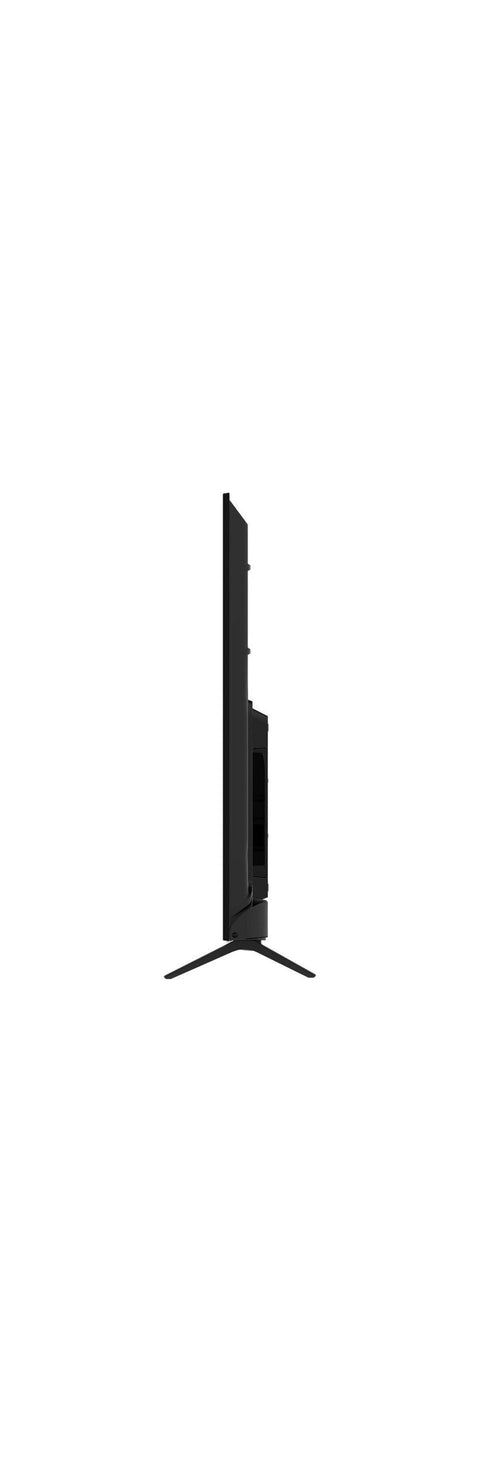

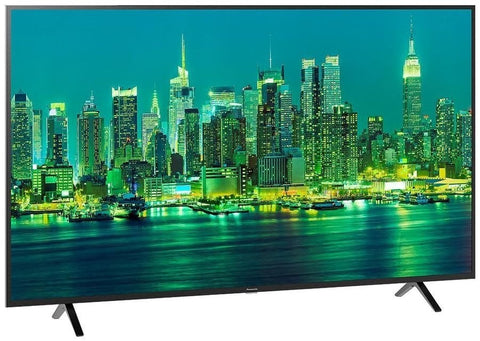

Image gallery
With Stand
- Dimensions
- 123.4 cm•78.7 cm•26.9 cm
- Weight
- 16 Kg
Without Stand
- Dimensions
- 123.4 cm•71.9 cm•8.3 cm
- Weight
- 15.5 Kg
- Screen shape
- Flat
- Frameless
- No
- Colors
Stand
- Removable stand
- No
- Stand shape
- --
VESA
- VESA size
- 400 x 300 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- my Home Screen • my Home Screen 7.0
Voice assistants
- Alexa
- Google Assistant
- Yes
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- --
- ROM
- --
Consumption
- HbbTV
Cable connections
- Energy efficiency
- G
- Standby consumption
- 0.5 W
- Average consumption
- --
- Consumption
- --
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
