When your television begins to fail, whether it is losing power, displaying distorted images, or refusing to connect to inputs, the key to a successful repair starts with understanding what is happening inside the unit. At TVpartsToday, The World's #1 Hub for DIY TV Repair, we have helped thousands of customers turn confusing symptoms into simple, affordable fixes by focusing on the core components that drive every modern TV.
Modern televisions are built around a small group of essential circuit boards and modules. Each one plays a distinct role, and when one fails, it creates specific, recognizable symptoms. Learning how these parts function not only makes troubleshooting easier, but also helps you avoid unnecessary replacements and wasted time.
Would you prefer to explore this information via an informative, interactive guide? If so, please visit our Interactive TV Circuit Board Guide on our website!
Would you prefer to watch a video covering this information instead? Check out our helpful YouTube video below:

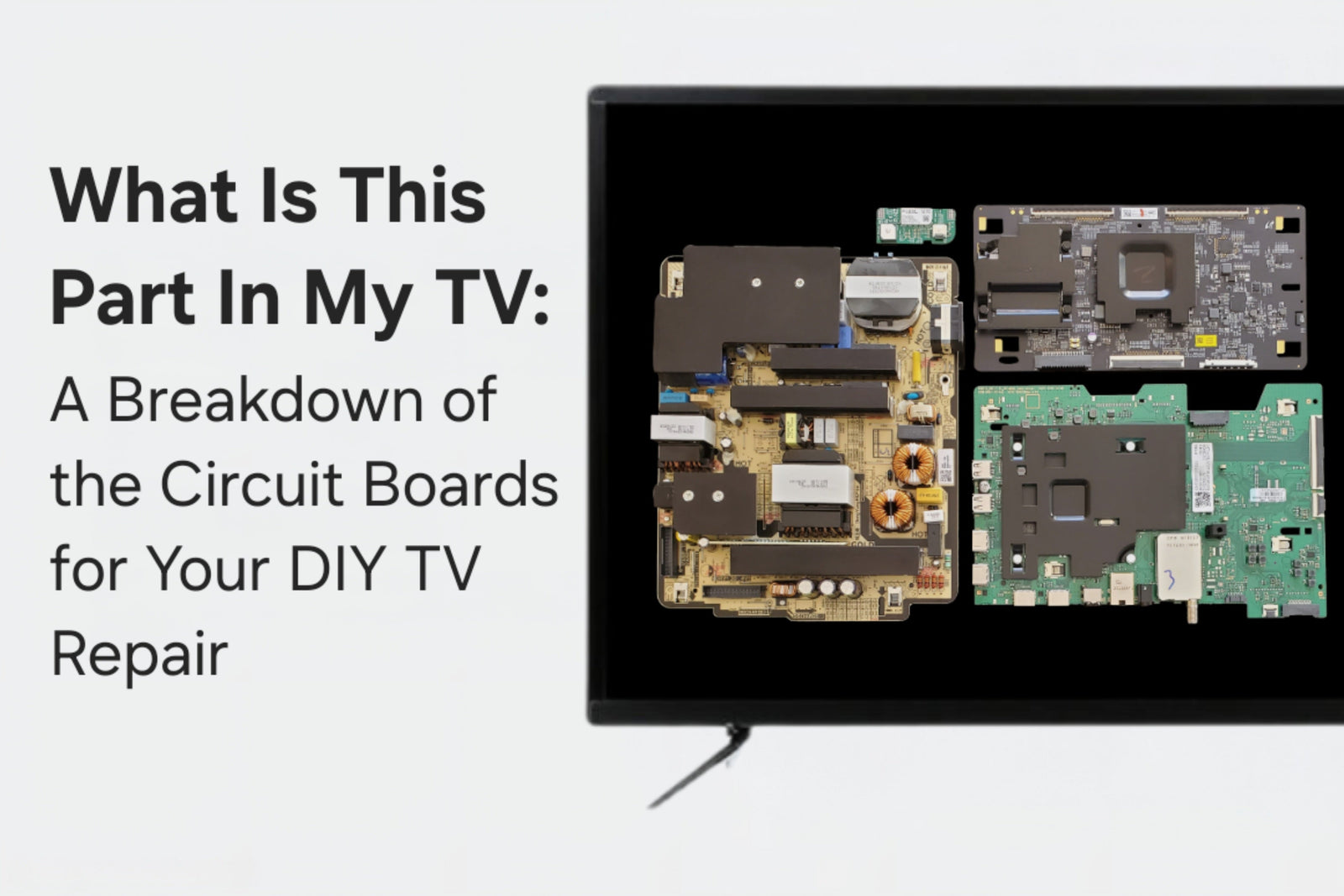

The Core Components That Power Your TV
Every flat screen television relies on a coordinated system of boards working together. When one component fails, the entire system can appear compromised, even if the issue is isolated.
Power Supply Board
The power supply board is responsible for converting the electricity from your wall outlet into usable voltages for every other component in the TV. It distributes power to the main board, backlights, and supporting circuits while also regulating voltage levels to prevent damage.
When this board begins to fail, the symptoms are often immediate and noticeable. A completely dead TV, random shutdowns, clicking noises during startup, or a blinking standby light are all strong indicators of a power-related issue. In many cases, what appears to be a catastrophic failure is simply a weakened capacitor or voltage regulator on this board.
It is also important to understand that the power supply can sometimes appear faulty due to issues elsewhere. A shorted backlight strip or failing component can place an abnormal load on the power supply, causing it to shut down as a protective measure. This is why experienced technicians often rely on process of elimination rather than jumping to conclusions based on voltage readings alone.
Main Board
The main board serves as the central control system of the television. It manages video processing, audio output, input recognition, and all smart TV functions. Every command from your remote, every HDMI signal, and every app runs through this board.
When the main board fails, the symptoms can vary widely. You may see a TV that powers on but has no picture, HDMI ports that stop recognizing devices, apps that freeze or crash, or a unit that continuously reboots during startup. Because it controls so many functions, main board failures often feel unpredictable.
Another key consideration is firmware compatibility. Modern televisions rely heavily on software stored on the main board. Installing an incorrect board, even one that looks identical, can result in boot loops, missing features, or complete failure to power on. This is why matching the exact part number is critical for a successful repair.
T-Con Board
The T-Con board, or timing control board, is responsible for translating video data from the main board into signals that the display panel can understand. It controls how pixels are refreshed, how colors are displayed, and how the image is synchronized across the screen.
When this board begins to fail, the symptoms are usually visual. You may notice vertical or horizontal lines, washed out colors, flickering images, or a completely black screen despite having sound. In many cases, a T-Con failure is mistaken for a damaged panel, when in reality it is a relatively simple and affordable fix.
Because of its role in image processing, the T-Con board is often the first component to replace when you have sound but no picture. It is also one of the most beginner-friendly repairs, requiring minimal tools and straightforward installation.
LED Driver and Backlight System
The LED driver works alongside the power supply to regulate the brightness and performance of the TV’s backlighting system. In some models, the LED driver is integrated into the power supply board, while in others it exists as a separate component.
When the LED driver or backlights fail, the TV may still produce sound and even generate an image, but the screen will appear completely black. This is because the image is present but not illuminated. A quick flashlight test often confirms this condition by revealing a faint picture on the screen.
Backlight-related issues can also cause flickering brightness, uneven lighting, or a screen that briefly lights up before going dark. While replacing backlight strips is more advanced, replacing the power supply or LED driver is often enough to restore proper function.
Wi-Fi Board
The WiFi board is responsible for enabling wireless connectivity and supporting smart TV features. It allows your television to connect to streaming services, download updates, and communicate with other devices.
When this board fails, the symptoms are usually limited to connectivity issues. The TV may not detect available networks, may disconnect frequently, or may display error messages related to missing wireless modules. In some designs, the WiFi board also handles Bluetooth and infrared communication, meaning a failure can impact remote functionality as well.
Unlike other boards, WiFi modules are often overlooked during troubleshooting because they do not affect core display or power functions. However, for users who rely on streaming, replacing this small component can restore full functionality without needing to replace the entire main board.
Diagnosing Problems the Right Way
One of the most important principles in TV repair is understanding that symptoms can overlap. A black screen does not always mean a bad panel, and a power issue does not always originate from the power supply. This is why technicians, even with advanced tools, rely heavily on process of elimination.
Start with the most common and easiest-to-replace components based on the symptoms you observe. If one replacement does not resolve the issue, move to the next most likely cause. This method is not only effective, but also minimizes unnecessary spending.
TVpartsToday Tip: Always match the exact part number printed on the board inside your TV. Model numbers and board numbers alone cannot guarantee compatibility, and one incorrect digit can result in a completely incompatible part.
Installing Replacement Parts Safely
Once you have identified the correct component, the installation process is typically straightforward. Begin by unplugging the television and allowing time for residual power to dissipate. Work on a clean, stable surface and take photos of all connections before removing any cables.
Carefully remove the back panel, disconnect the faulty board, and install the replacement in the same orientation. Double check all cable connections before powering the TV on. Testing the unit before fully reassembling ensures that any issues can be corrected quickly.
Repairing vs Replacing Your TV
In many cases, replacing a single board can restore a television to full working condition at a fraction of the cost of buying a new unit. Power supply boards, main boards, and T Con boards are among the most common and cost-effective repairs available.
Replacement becomes the better option when multiple major components have failed or when the panel itself is damaged. However, for the majority of common issues, repair is both practical and economical.
Your Path to Successful DIY TV Repair
Understanding how each internal component functions transforms TV repair from guesswork into a logical process. By identifying symptoms, matching exact part numbers, and following safe installation practices, you can confidently handle many repairs at home.
At TVpartsToday, The World's #1 Hub for DIY TV Repair, we provide not only the parts you need, but also the guidance and support to help you get the job done right the first time. Whether you are replacing a power supply, diagnosing a display issue, or restoring smart functionality, the right knowledge makes all the difference.
