If your Samsung Smart TV is freezing on startup, failing to recognize HDMI devices, showing a black screen with sound, or becoming unresponsive to the remote, the issue may be traced back to the main board. Main board failure is one of the most common hardware problems in modern Samsung televisions, and fortunately, it is also one of the most repairable. In many cases, replacing the Samsung BN94-18342C main board can restore full functionality without the expense of replacing the entire TV.

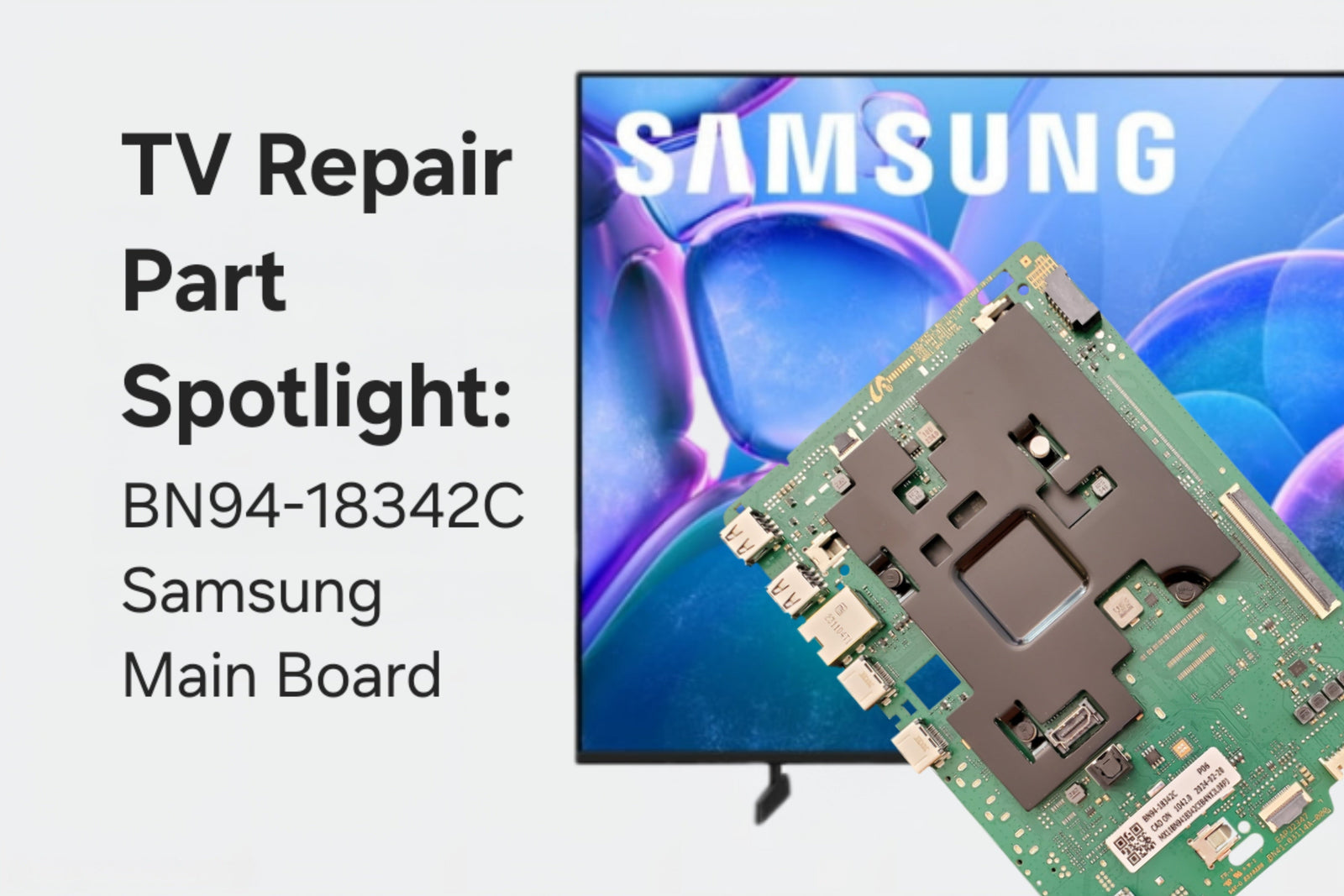

Below is a picture of the main board in question:
You can also find the part listed in our massive selection of inventory HERE!
At TVpartsToday, we frequently see TVs that appear completely unusable brought back to life with a single board replacement. If you'd like to watch a video example of a Samsung part swap, take a look at our helpful YouTube video below:
Ready to jump into your repair? Watch our helpful YouTube video on How to Get Started below:
Why the Samsung BN94-18342C Main Board Is Important
The BN94-18342C Samsung main board is used in select Samsung Smart TV models and is responsible for managing essential system functions. This includes HDMI input processing, operating system control, app performance, audio and video output, and communication between internal components such as the T Con board and power supply.
When this board begins to fail, the TV may still power on but struggle to display an image or respond to commands. Symptoms often mimic more serious panel issues even though the display itself is still functional.
Replacing the BN94-18342C allows the TV to process signals correctly again and often resolves startup loops, app crashes, and connectivity problems immediately.
Signs the Main Board May Be Failing
Main board failure tends to produce consistent symptoms across many Samsung models. A TV that powers on but produces no picture while sound continues to play is a common indicator. HDMI inputs may stop detecting connected devices or drop signal intermittently. The remote may respond slowly or not at all.
In some cases, the TV may freeze during app usage, reboot randomly, or remain stuck on the Samsung startup logo. These issues are frequently tied to signal processing or software control functions managed by the main board.
Starting With a Basic Reset
Before opening the TV, performing a power reset is always recommended. Unplug the TV from the wall outlet and press the physical power button on the set for approximately thirty seconds. Leave the TV unplugged for at least one minute before reconnecting power and turning it back on.
If freezing, HDMI recognition failures, or startup problems persist, inspecting the BN94-18342C main board becomes the next logical step.
Differentiating Between Board Failures
Accurate diagnosis helps prevent unnecessary part replacement. A black screen accompanied by working audio may indicate either a main board or T Con issue. HDMI failures or app crashes typically point toward the main board. A TV with no power or standby light often suggests a power supply issue instead.
Using a flashlight test can further clarify the problem. If a faint image is visible on the screen when a light is shined across it, the backlight system may be the cause. If sound is present with no visible image, checking the T Con or main board is recommended.
TVpartsToday Tip: Symptoms that resemble panel failure are often caused by replaceable boards. Diagnose carefully before assuming the screen is defective.
Matching the Correct Replacement Part
Samsung repairs require careful part number matching. The BN94-18342C part number can be found on a white barcode sticker attached to the board. Numbers printed directly onto the circuit board itself are manufacturing references and do not guarantee compatibility.
Even TVs sharing the same model number may contain different main board revisions. Matching the manufacturer part number ensures the replacement will function properly with your specific panel configuration.
TVpartsToday Tip: Always match by the full manufacturer part number rather than relying on board numbers or TV model alone.
Replacing the BN94-18342C Main Board
Once the correct replacement is obtained, installation is typically straightforward. Disconnect the TV from power and place it face down on a padded surface. Remove the screws securing the rear cover and locate the main board, identified by the HDMI and USB ports.
Taking photos of cable connections before removal helps ensure proper reinstallation. Disconnect each cable carefully, remove the mounting screws, and transfer the new board into place. Reconnect all cables, secure the board, and reassemble the TV before testing.
After replacement, resetting picture or system settings may be necessary to restore optimal performance.
Repair Instead of Replace
The BN94-18342C Samsung main board is a highly repairable component that can resolve many common Smart TV issues quickly and affordably. Problems such as black screens, HDMI failures, startup loops, or unresponsive apps often originate from this board rather than the panel itself.
With proper troubleshooting and correct part number matching, DIY repair can extend the life of your Samsung TV and eliminate the need for costly replacement. If you are unsure about compatibility, the TVpartsToday team can help identify the correct board from a simple photo.
