If your Samsung Smart TV is giving you trouble, such as freezing on startup, refusing to recognize HDMI devices, displaying a black screen while sound still plays, or ignoring your remote, then the main board is often the culprit. Main board failure is one of the most common and fixable problems in modern Samsung televisions, and the Samsung BN94-18150N is the replacement part we are spotlighting for you today.
Would you rather dive right into your repair? Watch our helpful YouTube video on How to Get Started below:
Why the Samsung BN94-18150N Matters

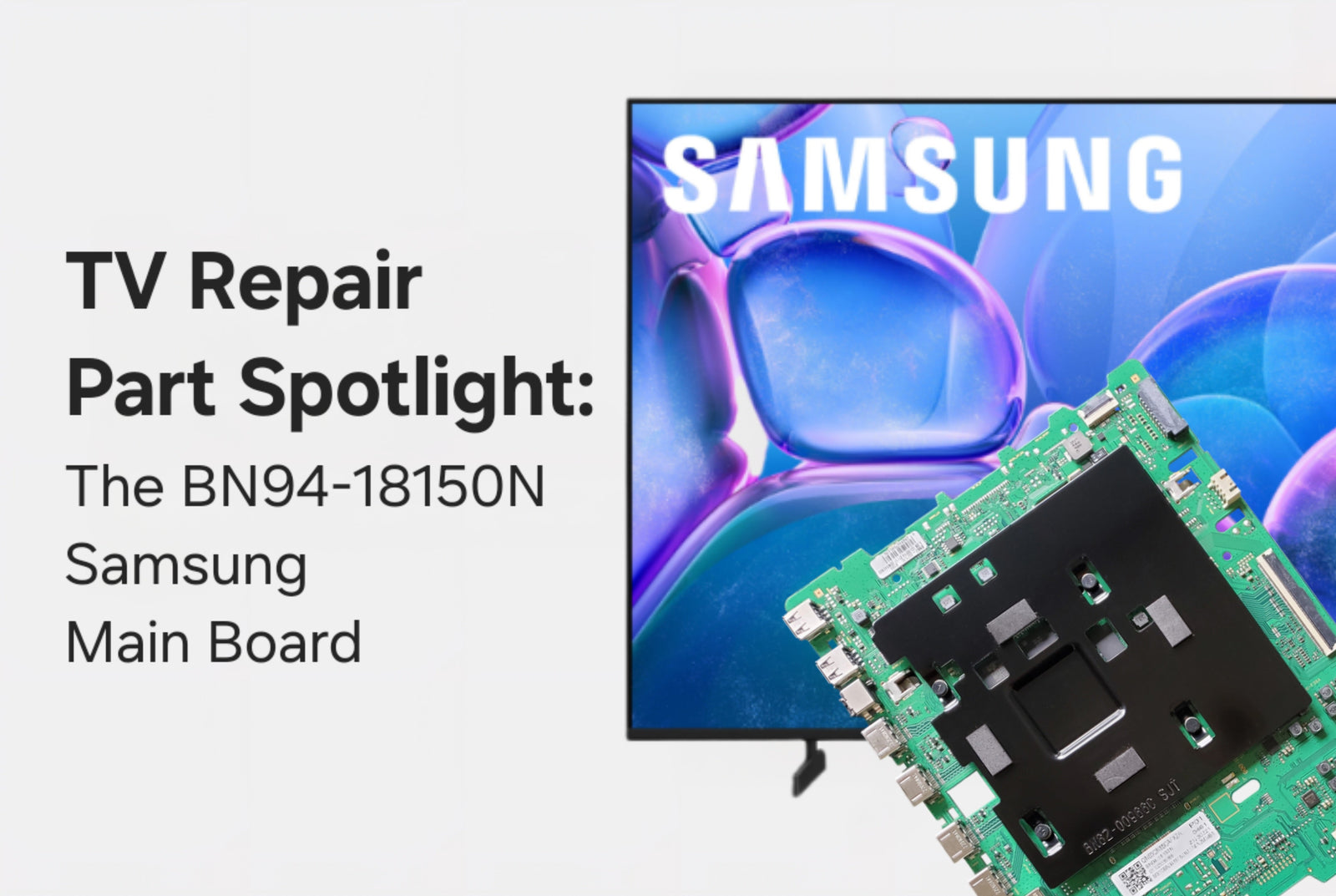

The BN94-18150N Samsung main board is widely used one of Samsung's most popular models, the QN65QN85CAFXZA. This board controls critical functions like video input, HDMI processing, system software, and overall communication between components. If it fails, you may experience black screens, random restarts, or failed app loading. Replacing the main board can restore your TV’s full functionality without the need for a costly new set.
Common Symptoms of a Failing Main Board
When the BN94-18150N starts to fail, you may notice:
- The TV powers on but shows no picture (sometimes with sound).
- HDMI ports fail to detect or maintain signal.
- The remote becomes unresponsive or delayed.
- Apps freeze, crash, or refuse to load.
- The TV reboots randomly or stays stuck on the Samsung logo.
First Step: Try a Reset
Before disassembly, try a power reset:
- Unplug your Samsung TV from the outlet.
- Hold the physical power button on the TV for 30 seconds.
- Keep it unplugged for at least 60 seconds.
- Plug it back in and turn it on.
If the problem persists, particularly with HDMI or startup issues, the BN94-18150N is worth examining!
Main Board vs. T-Con vs. Power Supply
Diagnosing your TV correctly helps avoid wasted time and parts:
Black screen with sound: Could be main board or T-Con.
No HDMI or smart functions: Usually the main board.
No power at all: Likely the power supply, especially if there is no standby light.
TVpartsToday Tip: Use the flashlight test in a dark room. If faint images appear, it’s a backlight issue. If there’s no image but sound is present, start with the T-Con. If both picture and sound fail, check the main board first.
Need help with the flashlight test? We have a blog for that!
Finding the Right Part Number
With Samsung repairs, matching the part number is critical. The BN94-18150N should be confirmed on a sticker near a barcode or QR code on the board itself. Do not rely on numbers printed directly on the circuit board, as these are manufacturing codes and do not guarantee compatibility.
TVpartsToday Tip: Always confirm the exact part number before ordering. Samsung TVs with the same model number may still use completely different main boards internally.
Replacing the BN94-18150N Main Board
Here’s the safe way to swap out your board:
- Unplug the TV and lay it face-down on a padded surface.
- Remove the screws securing the back panel.
- Locate the BN94-18150N (look for HDMI and USB ports).
- Take reference photos of connections.
- Carefully unplug each cable and remove mounting screws.
- Install the new board, reconnect cables, and secure it with screws.
- Reattach the back panel, power on the TV, and test.
TVpartsToday Tip: If you notice unusual colors or menus missing after replacement, adjust your picture settings, as some software configurations may need to be reset after a board swap.
Final Thoughts: Repair Instead of Replace
The Samsung BN94-18150N main board is one of the most commonly replaced parts in Samsung Smart TVs and is straightforward to install for most DIYers. If you’re facing black screens, non-responsive HDMI ports, or repeated system crashes, replacing the board can restore your TV’s performance quickly and affordably.
Just remember, always match the exact part number, not just the board number or the TV model! If you’re unsure, send us a photo of your part and our team at TVpartsToday will help identify it in seconds.
