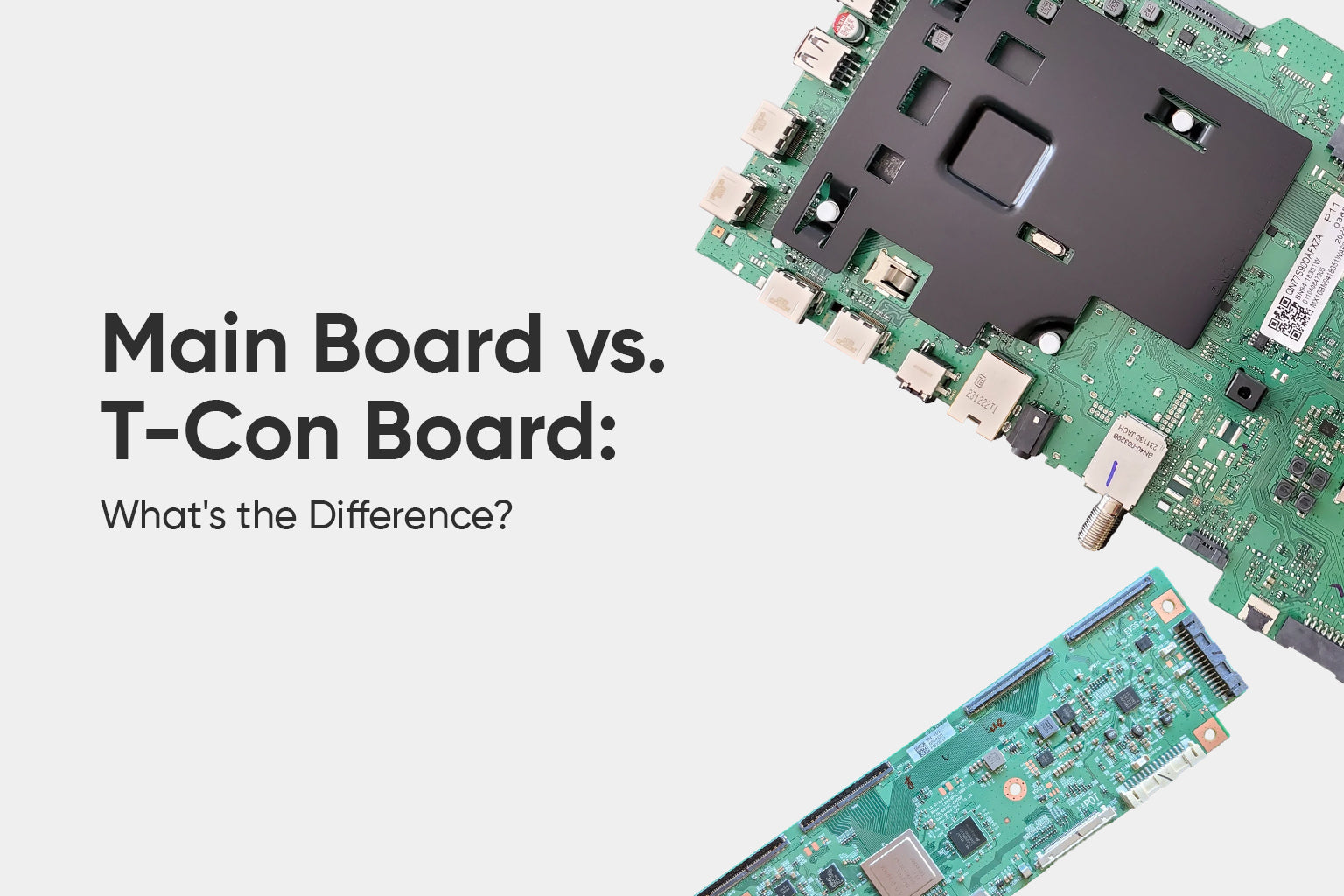

Main Board vs. T-Con Board: What's the Difference?

Main Board vs. T-Con Board: What's the Difference?

Mike Smith |

If you're troubleshooting your TV and wondering what’s going wrong behind the screen, understanding the difference between the main board and the T-Con board is essential. These two components play very different - but totally interconnected - roles when it comes to what you see and hear on your TV.

Let’s break it down with some real repair insight from your friends at TVpartsToday 🔧

Would you rather watch a video instead? Check out our helpful YouTube video on Identification 101 below:


🔧 Main Board (a.k.a. the Motherboard)

Purpose: Acts as the brain of the TV

Your main board does a LOT. From receiving input signals to running your apps and controlling sound, it's the central hub of all your TV’s smart features.

Responsibilities:

  • 🎮 Handles all input signals (HDMI, USB, coax, antenna, etc.)

  • 📱 Runs your TV’s menu, OS, and streaming apps

  • 🔊 Manages audio output and syncing

  • 🎥 Sends video data to the T-Con board (or directly to the screen in some models)

💡 TVpartsToday Tip:
If your TV turns on but doesn’t respond to HDMI inputs or has no sound, the main board is likely your culprit.


🖼️ T-Con Board (Timing Control Board)

Purpose: Controls how video is drawn on the screen

The T-Con board is the conductor of the pixel orchestra, taking signals from the main board and translating them into the ultra-precise timing needed to make your picture look sharp, colorful, and stable.

Responsibilities:

  • 🎨 Converts video signals into pixel data

  • 🔄 Manages refresh rate and voltage timing

  • 🧩 Ensures each pixel lights up at the exact right moment for clean, sharp images

💡 TVpartsToday Tip:
If your screen shows lines, flickers, displays half an image, or has weird colors — your T-Con board could be to blame.


🆚 Main Board vs. T-Con Board: Quick Reference

Feature

Main Board ✅

T-Con Board ✅

Handles HDMI/USB inputs

Controls smart features

Manages pixel timing

Directly connects to screen

Indirectly

Common failure symptoms

No power, input not working, sound only

Flickering screen, lines, no picture




🔁 What If My TV Doesn’t Have a T-Con?

Some modern TVs, especially budget LED or combo systems, combine the T-Con into the main board itself. That means you won’t find a separate T-Con board when you open it up - it’s already built into the motherboard!

💡 TVpartsToday Tip:
If you're missing a T-Con in your set, don’t panic. Just send us a picture of your boards at info@TVpartsToday.com, and we’ll identify everything you need - fast.


🚨 A Note on Part Numbers

Whether you're replacing your main board or T-Con board, NEVER order based on the board number alone! Always use the manufacturer’s part number, usually found on a white barcode sticker. Board numbers (e.g., EAX, BN41, BN97) are used during manufacturing and do not guarantee compatibility.

💡 TVpartsToday Tip:
 Still not sure which number is the right one? Email us a clear photo of your board, and we’ll ID it for you for free. No pressure, no guessing - just expert help when you need it.


🧰 Final Thoughts: Get the Right Fix, the First Time

Understanding the difference between the main board and the T-Con board helps you zero in on the exact issue with your TV. Whether you’re seeing glitches in the image or your inputs just aren’t responding, knowing which board does what can save you serious time, money, and frustration.

At TVpartsToday, we see it all - and we know just how easy it is to get tripped up by all those labels and codes. But when you shop smart and use the correct part number, you're giving yourself the best chance at a smooth, successful DIY repair.

💬 Need Help?

If you’re still unsure about the issue or need to replace a part, reach out to TVpartsToday. We can help you identify the exact cause of the problem and provide the right replacement part!

Would you rather watch a video? Check out our helpful Troubleshooting 101 playlist over on YouTube!
Would you rather chat with a seasoned repair expert? Head on over to our TVRepairHelp subReddit!

📦 Need help finding the right board or part?
📞 Call us at 930-212-1975 or browse our inventory online.
🛠️ DIY-friendly parts, fast shipping, and expert support – only at TVpartsToday.
