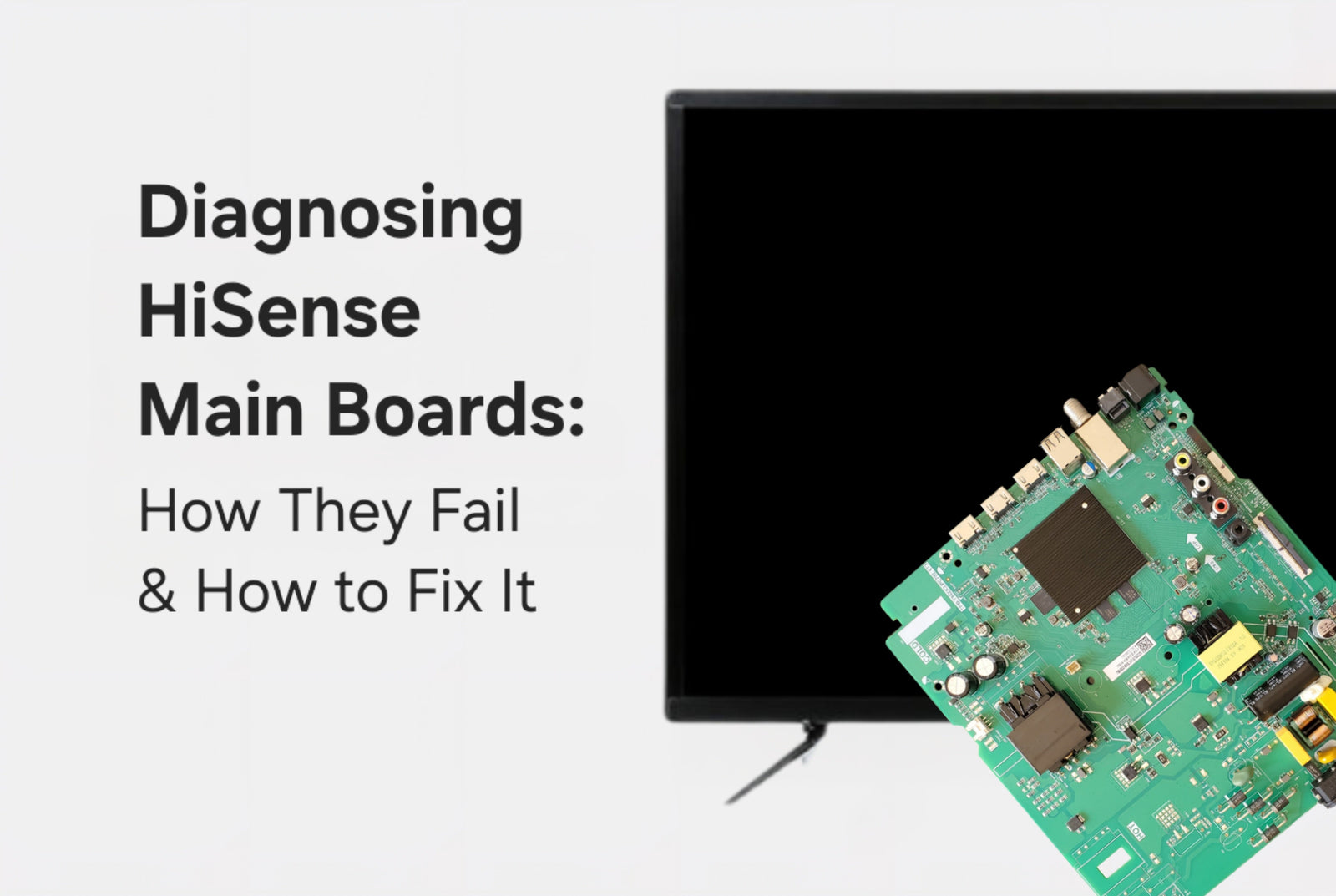

The HiSense main board is the central command system within any HiSense smart television, controlling all critical communication pathways and signal processing. When your HiSense TV has no picture, displays distorted colors, fails to respond to the remote, or crashes during streaming, the main board is one of the first components to evaluate. As the system coordinating video and audio data, software operations, network communication, and input management, the main board performs the work that keeps the TV functioning.
Want to see just how easy one of these main board replacements can be? Watch our helpful YouTube video below:
For an introductory overview of how to begin a proper diagnostic and replacement process, watch our How To Get Started video below:
What the HiSense Main Board Controls
Input Signal Processing
The HiSense main board receives signals from HDMI ports, USB inputs, AV/component connections, coaxial antenna sources, and network interfaces. It translates these signals into digital information that the TV can understand. When multiple inputs fail to register or the TV does not detect HDMI sources, the main board is a leading suspect.
Video Data Management
This board decodes incoming video and prepares it for display. It is responsible for resolution scaling, frame synchronization, color accuracy, and image enhancement settings. If your HiSense TV shows flickering, washed-out colors, digital distortion, or freezes on certain inputs, the main board’s video processing circuitry may be involved.
Audio Routing and Control
The main board manages audio processing, regulates volume, and directs sound to internal speakers or external sound systems. When sound becomes intermittent, fails to sync with video, or disappears despite working speakers, the issue can originate in the audio processing section of the HiSense main board.
Smart Platform Operations
HiSense Smart TVs rely on the main board to run their operating system, manage apps, handle built-in streaming services, and control network connectivity. This board contains the CPU, GPU, memory modules, firmware storage, and networking components. When your apps crash, the TV freezes at startup, or Wi-Fi settings reset unexpectedly, the main board’s system management may need attention.
Device Control Interfaces
The main board interfaces with the IR sensor, physical buttons, Bluetooth module, and Wi-Fi antennas. If the TV fails to respond to remote control commands or loses connection with paired devices, this board is responsible for those interactions.
How the HiSense Main Board Interacts With the T-Con Board
The T-Con (Timing Control) board plays a key role in producing the image you see on screen. In many HiSense models, the main board sends processed video data to a separate T-Con board via LVDS or V-by-One cables. The T-Con board then translates that data into precise timing signals that control pixel rows and columns across the panel.
This separation allows more accurate diagnosis. If video processing is correct yet picture artifacts remain, the T-Con board is often involved.
In select HiSense models, especially slim or entry-level units, T-Con functionality is integrated directly into the main board. In those designs, ribbon cables from the main board connect directly to the panel. When T-Con circuitry is integrated, any failure in timing or pixel communication means the entire HiSense main board must be replaced.
Identifying Symptoms of HiSense Main Board Failure
Here are the most common symptoms that point toward issues within the HiSense main board:
No video output despite backlight being active
HDMI ports failing to detect any connected device
TV turns on but freezes during the HiSense startup screen
Picture distortion, incorrect colors, or visual artifacts
Remote control unresponsive or delayed
No signal from any input despite correct cable connections
These symptoms help differentiate main board failure from other components such as backlight systems or power supply boards.
Diagnosing or Replacing a HiSense Main Board
Before replacing your HiSense main board, run through foundational software and hardware checks. Attempt a factory reset or firmware update if the TV menu is accessible. Verify all ribbon connections between the main board, power supply board, and T-Con or panel are fully seated. Examine the board for burnt marks, bulging capacitors, or cracked solder joints. If the backlight is working but there is no image or the screen freezes, the problem is often traced back to either the main board or the T-Con. In models with integrated T-Con functions, display issues are usually caused by the main board.
Always match the exact HiSense part number printed on the board, not just the TV model. Identical TV models often use different board revisions depending on manufacturing date, region, or panel type. Using an incorrect board will lead to compatibility errors, including no display, boot looping, or non-functional inputs.
Locating the HiSense Main Board
The HiSense main board is located behind the rear cover of the television. It is typically positioned next to the input ports and is larger than the T-Con board. It connects to the power supply board for voltage, to the T-Con or panel through ribbon cables for video output, and to the IR sensor, speakers, and control buttons. The part number is printed on the main board itself, usually on a white or yellow sticker. Use this number when ordering a replacement.
If your HiSense TV uses a main board with an integrated T-Con, confirming that configuration is essential. Installing the wrong board type will result in complete display failure. TVpartsToday can assist with part verification to ensure the correct match.
A proper understanding of HiSense main board functions helps you diagnose input failures, display abnormalities, system freezes, and startup issues with confidence. For accurate replacements and expert support, TVpartsToday provides verified HiSense main boards, fast shipping, and knowledgeable assistance to help you restore your television quickly and reliably.
